BT Shrink Chuck Taper

Product Origin:	China
Brand:	BRIGHT-TOOLS
Shipping Port:	Qingdao Shanghai
Color:	Bright
Payment:	T/T

contact now

Specification

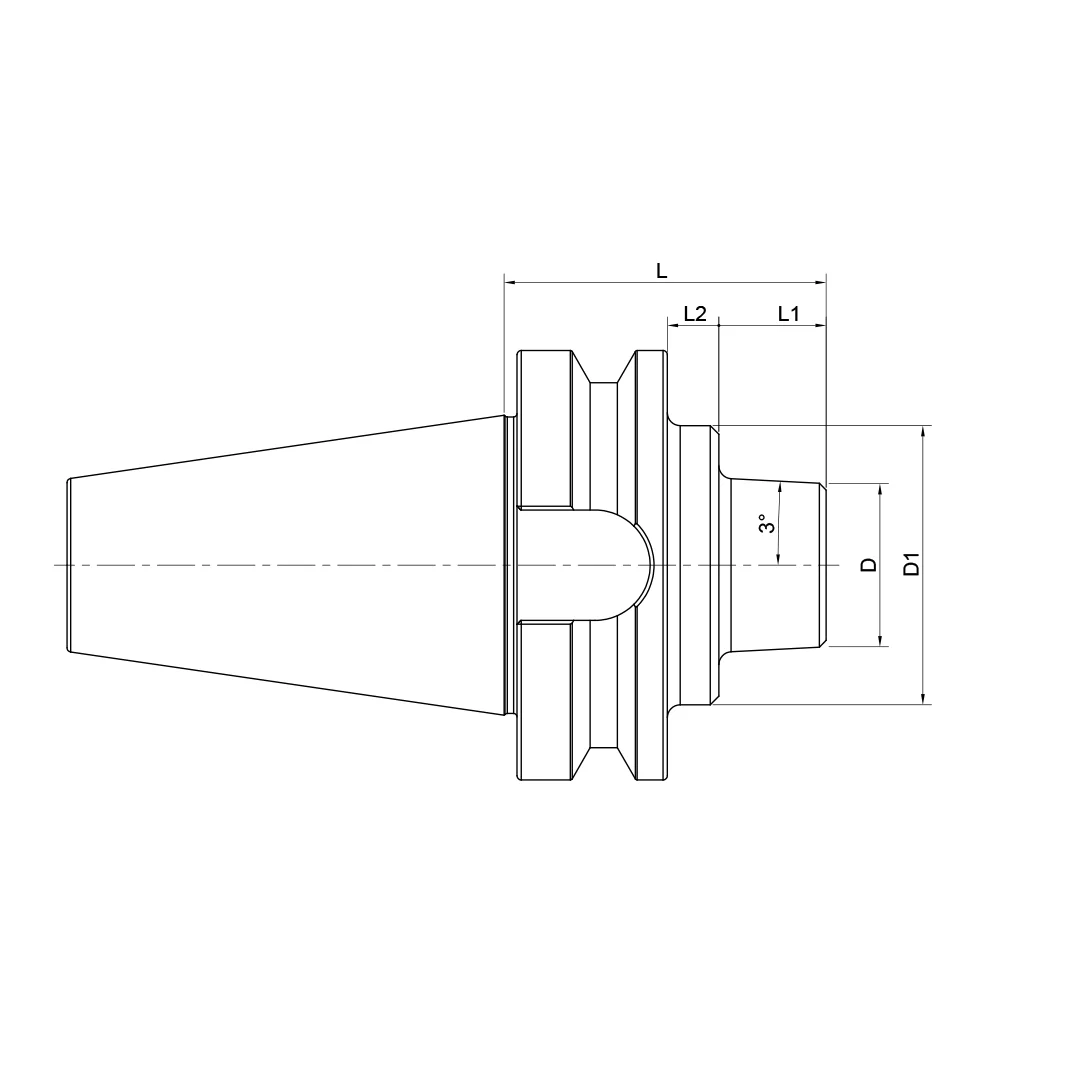

Simple figure
Precautions

Size	D	D1	D2	L	L1	L2	Figure
BT30-TSF06-35	19	-	34	35	13	-	1
BT30-TSF06-65	19	25.1	34	65	15	28	1
BT30-TSF08-35	23	-	34	35	13	-	1
BT30-TSF08-65	23	27.5	34	65	15	28	1
BT30-TSF12-35	38	-	-	35	13	-	2

BT40-TSF08-40	23	-	53	40	13	-	1
BT40-TSF08-70	23	31.2	53	70	15	28	1
BT40-TSF12-45	38	-	-	45	18	-	2
BT40-TSF12-75	38	-	-	75	48	-	2

BT50-TSF12-75	38	65	-	75	25	12	2
BT50-TSF12-225	38	65	-	225	175	12	2
BT50-TSF12-315	38	65	-	315	225	52	2

Note: BBT can be produced

HIGH CLAMPING FORCE

                     Collet Chuck                      Shrink  Chuck

HIGH PRECISION

 Shrink Chuck                                       Collet Chuck
