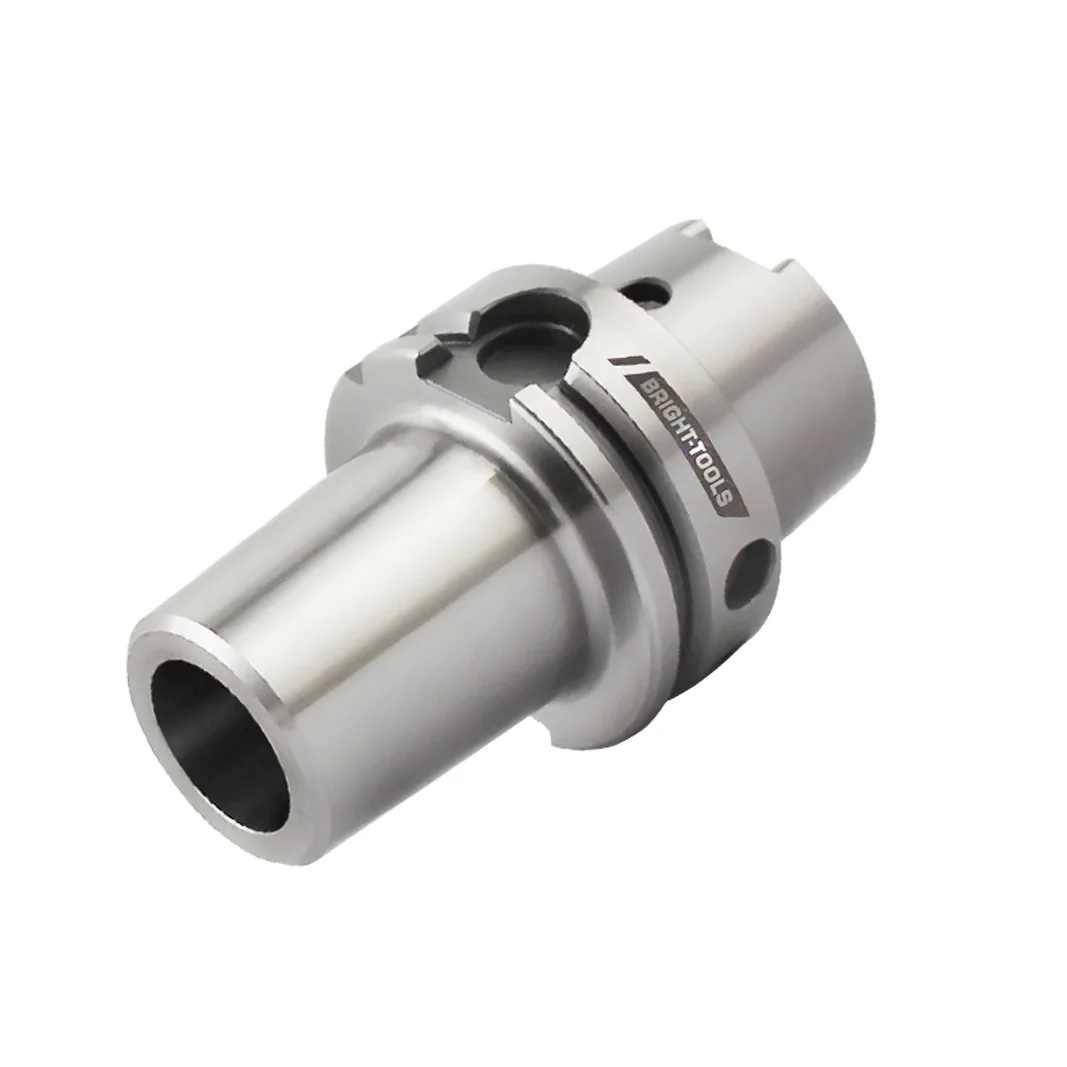

HSK-A Shrink Chuck Taper
/uploadfile/202106/01/96ea71740013ac829a97175f3ad3df7a_square.png /uploadfile/202106/01/eab4a56bceaf93d9c67791b90d58db05_square.png /uploadfile/202106/01/8f952d3fd401bcd7b0d87fbe25e3cc78_square.png /uploadfile/202106/01/11248cb97789d9582e437e7e8937165a_square.png /uploadfile/202106/01/87dcdb437e4f8cce06578f72911c0afb_square.png
HSK-A Shrink Chuck Taper
Product Origin: China
Brand: BRIGHT-TOOLS
Shipping Port: Qingdao Shanghai
Payment: T/T
contact now
  • Specification
  • Simple figure
  • Precautions


  • INTRODUCTION

Material:Heat shrinkable steel
Hardness:HRC56-60
Runout: 0.003 mm
Blancing: G2.5/25000 RPM
Usage: Working with induction shrink machine for mounting straight shank tools.

Size
D
D1
D2
L
L1
L2

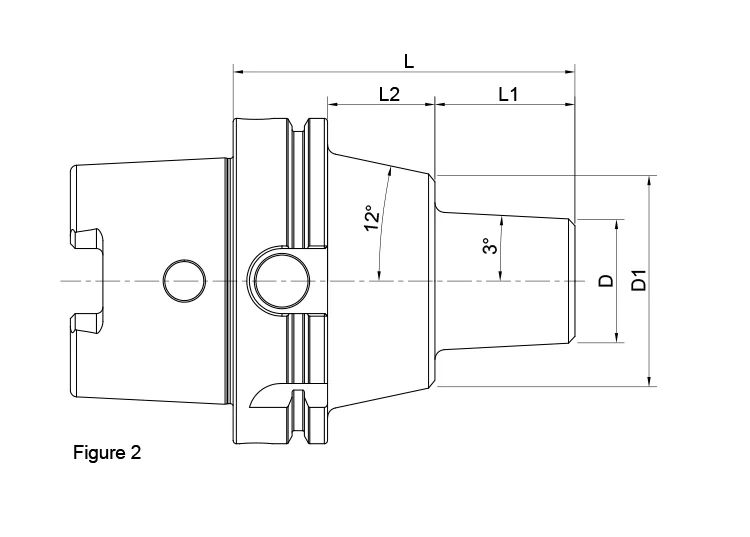

Figure
HSK40A-TSF06-37
19
-
34
37
17
-
1
HSK40A-TSF06-50
19
23.5
34
50
7
23
1
HSK40A-TSF08-50
23
27
34
50
7
23
1
HSK40A-TSF08-70
23
27.3
34
70
15
35
1







HSK50A-TSF06-42
19
-
42
42
16
-
1
HSK50A-TSF06-55
19
24.6
42
55
7
22
1
HSK50A-TSF08-55
23
28.1
42
55
7
22
1
HSK50A-TSF08-75
23
28.7
42
75
15
34
1
HSK50A-TSF12-75
38
-
-
75
49
-
2







HSK63A-TSF08-55
23
29.5
53
55
7
22
1
HSK63A-TSF08-75
23
30.5
53
75
15
34
1
HSK63A-TSF12-75
38
-
-
75
49
-
2
HSK63A-TSF12-135
38
-
-
135
109
-
2







HSK100A-TSF12-105
38
65
-
105
43
33
2
HSK100A-TSF12-225
38
65
-
225
163
33
2
HSK100A-TSF12-315
38
65
-
315
253
33
2
Note: Shrink Chuck Taper with Coolant Channels can be produced
