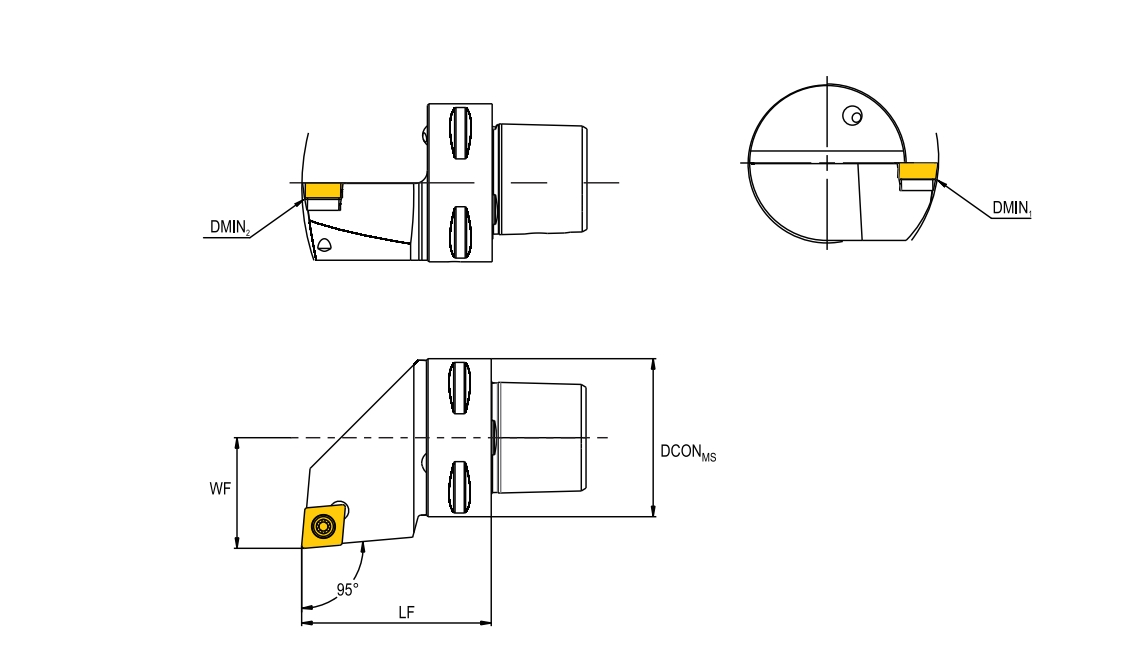

Size | DMIN1 | DMIN2 | DCONWS | LF | WF | Insert | Shim | Shim screw | Screw | Torx wrench | Hex wrench | |
Right hand | Left hand | |||||||||||
PSC3-SCLCR-22040-09 | PSC3-SCLCL-22040-09 | 130 | 116 | 32 | 40 | 22 | CC..09T3.. | SKCP-343 | SRS-3 | MS-1156 | T15 | S3.5 |
PSC4-SCLCR-27050-09 | PSC4-SCLCL-27050-09 | 130 | 140 | 40 | 50 | 27 | CC..09T3.. | SKCP-343 | SRS-3 | MS-1156 | T15 | S3.5 |
PSC5SCLCR-35060-09 | PSC5-SCLCL-35060-09 | 130 | 165 | 50 | 60 | 35 | CC..09T3.. | SKCP-343 | SRS-3 | MS-1156 | T15 | S3.5 |
PSC6-SCLCR-45065-09 | PSC6-SCLCL-45065-09 | 130 | 190 | 63 | 65 | 45 | CC..09T3.. | SKCP-343 | SRS-3 | MS-1156 | T15 | S3.5 |
PSC3-SCLCR-22040-12 | PSC3-SCLCL-22040-12 | 125 | 116 | 32 | 40 | 22 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC4-SCLCR-27050-12 | PSC4-SCLCL-27050-12 | 125 | 140 | 40 | 50 | 27 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC5-SCLCR-35060-12 | PSC5-SCLCL-35060-12 | 125 | 165 | 50 | 60 | 35 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
PSC6-SCLCR-45065-12 | PSC6-SCLCL-45065-12 | 125 | 190 | 63 | 65 | 45 | CC..1204.. | SKCP-453 | SRS-4 | MS-1158 | T15 | S4 |
