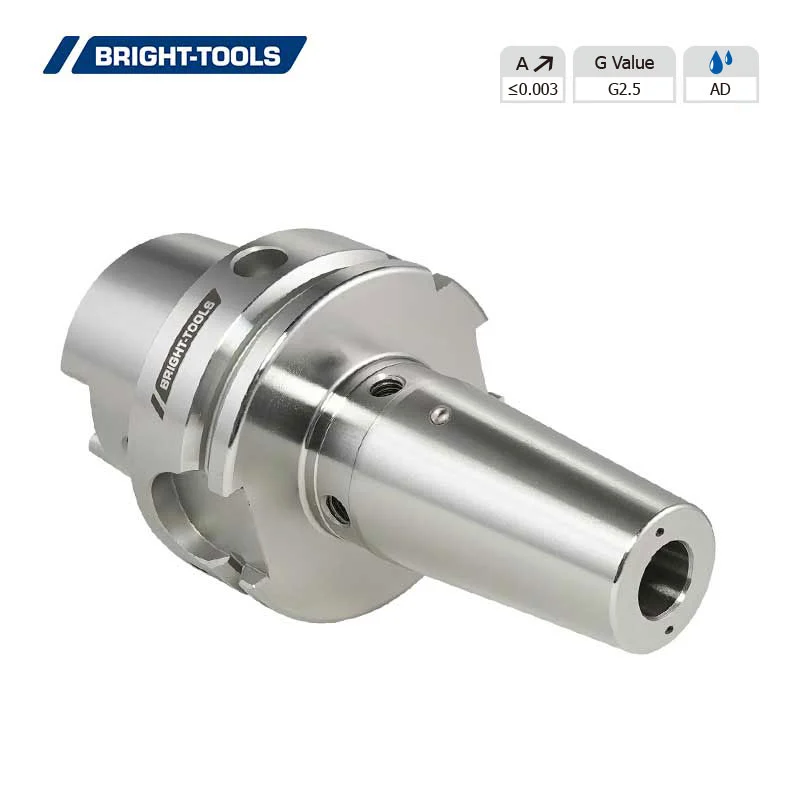

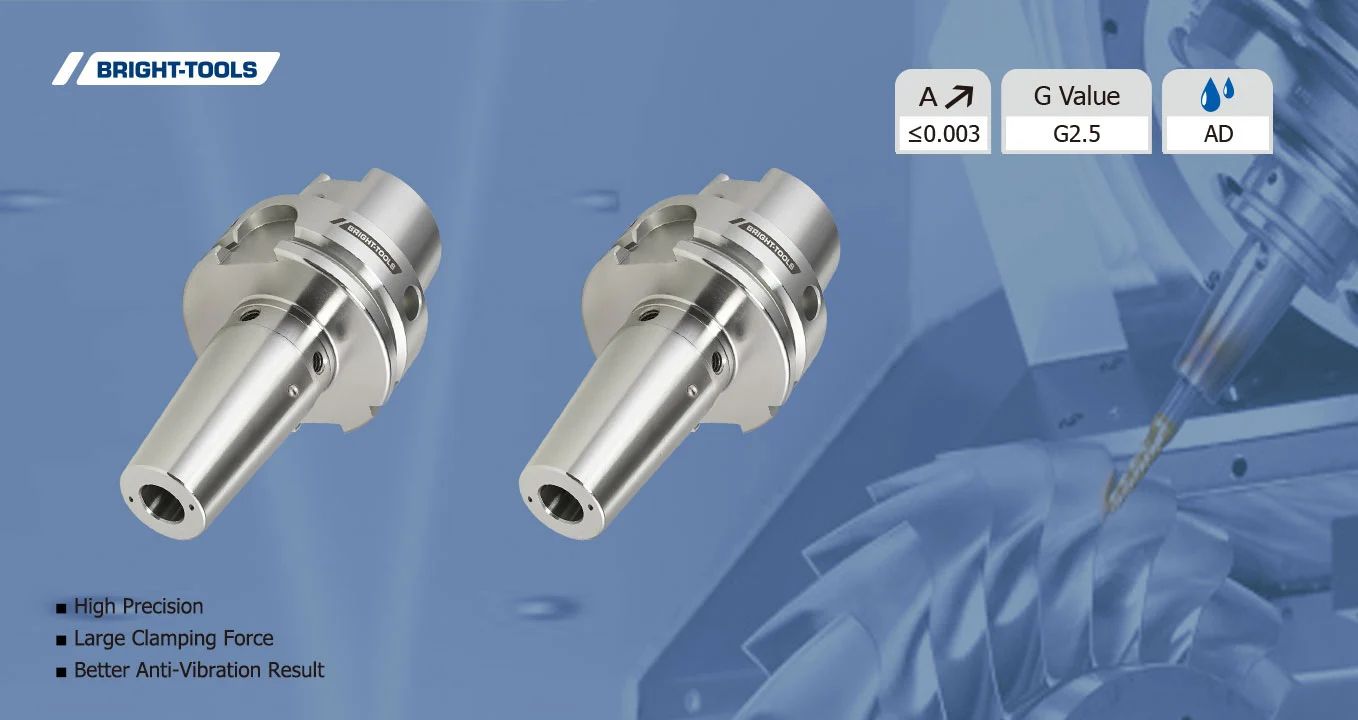

HSK-A Shrink Fit Chuck 4.5°, Coolant

HSK-A Standard Shrink fit Chuck use Heat resistant hot-working steel to clamp HSS and solid carbide tools via steel thermal expansion character. 0,003 mm accuracy and precise taper tolerances improve tool life, subsequent fine balancing bring Better surface quality and Low wear of the machine spindle

1. High runout accuracy (< 0.003 mm)

2. Extreme clamping torque by high pressing in the clamping bore

3. Short chamfer

4. Threaded bores for simple and fast balancing with screws

5. Coolant Channel on the cutter End

Buy HSK-A Shrink Fit Chuck 4.5°, Coolant

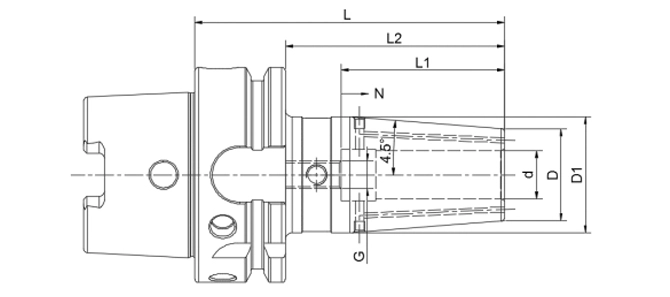

TECHNICAL DRAWING OF HSK-A SHRINK FIT CHUCK 4.5°, COOLANT

SHRINK FIT CHUCK

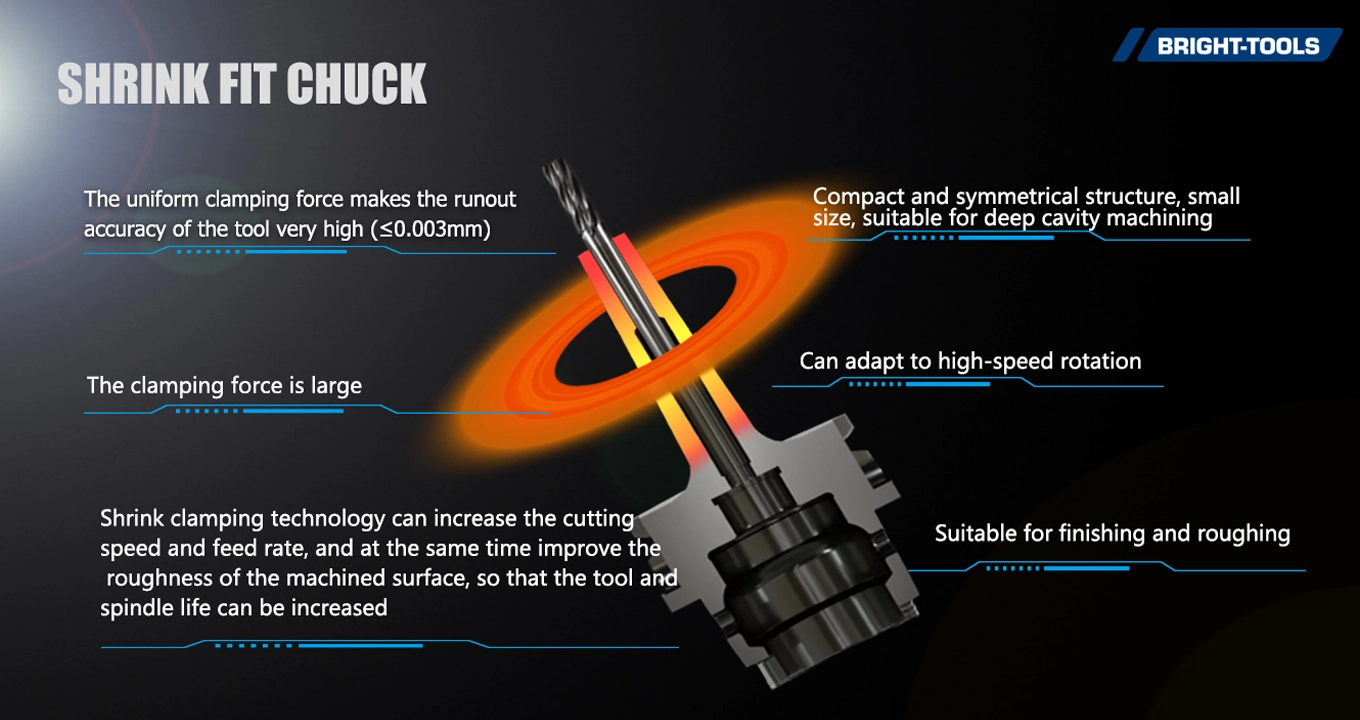

ADVANTAGES
FEATURES

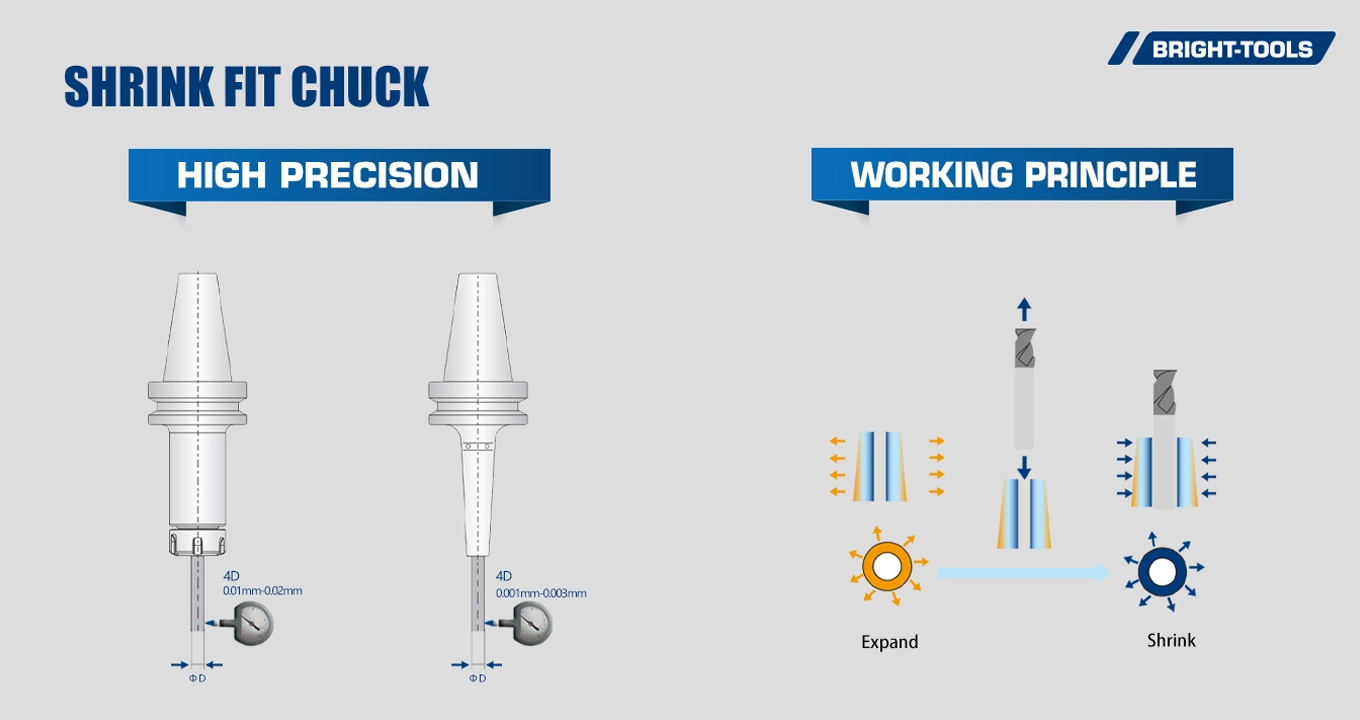

WORKING PRINCIPLE

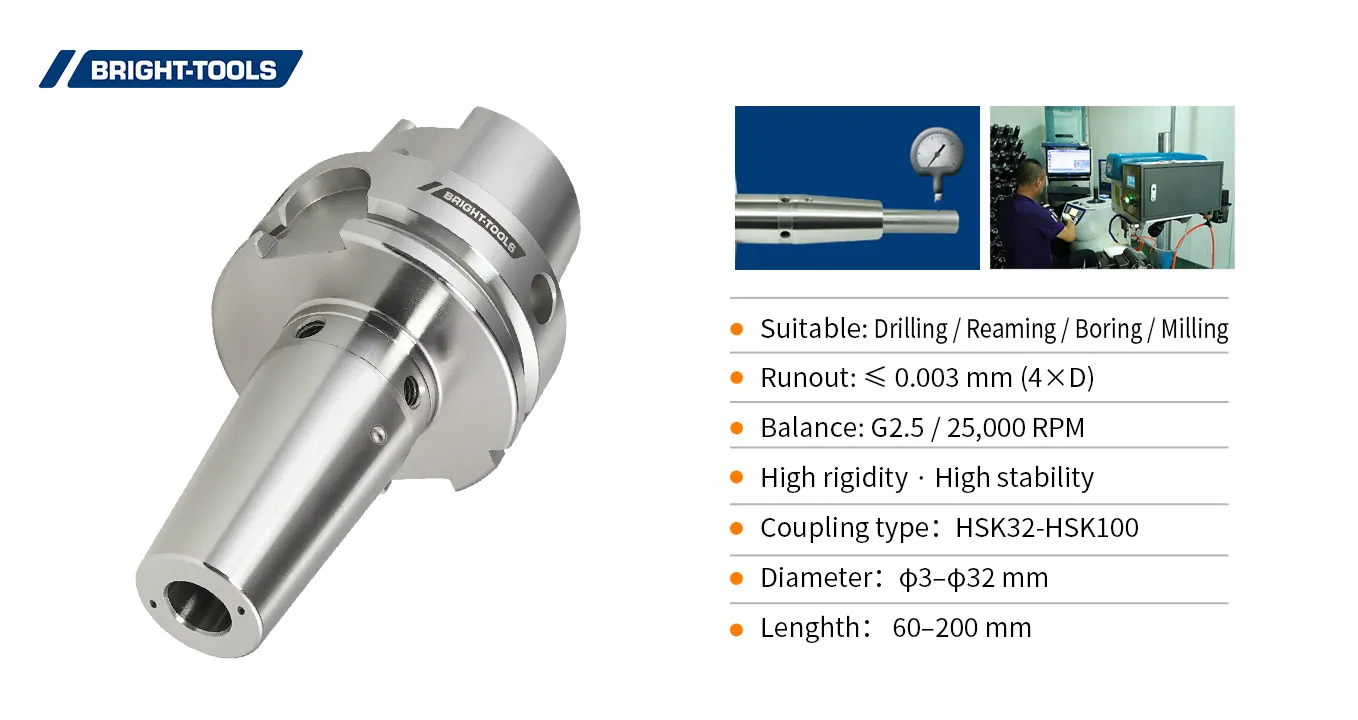

Bright Tools Heat Shrink Machine For Tool Holders

Shrink Fit Chuck of Heat Shrink Machine For Tool Holders

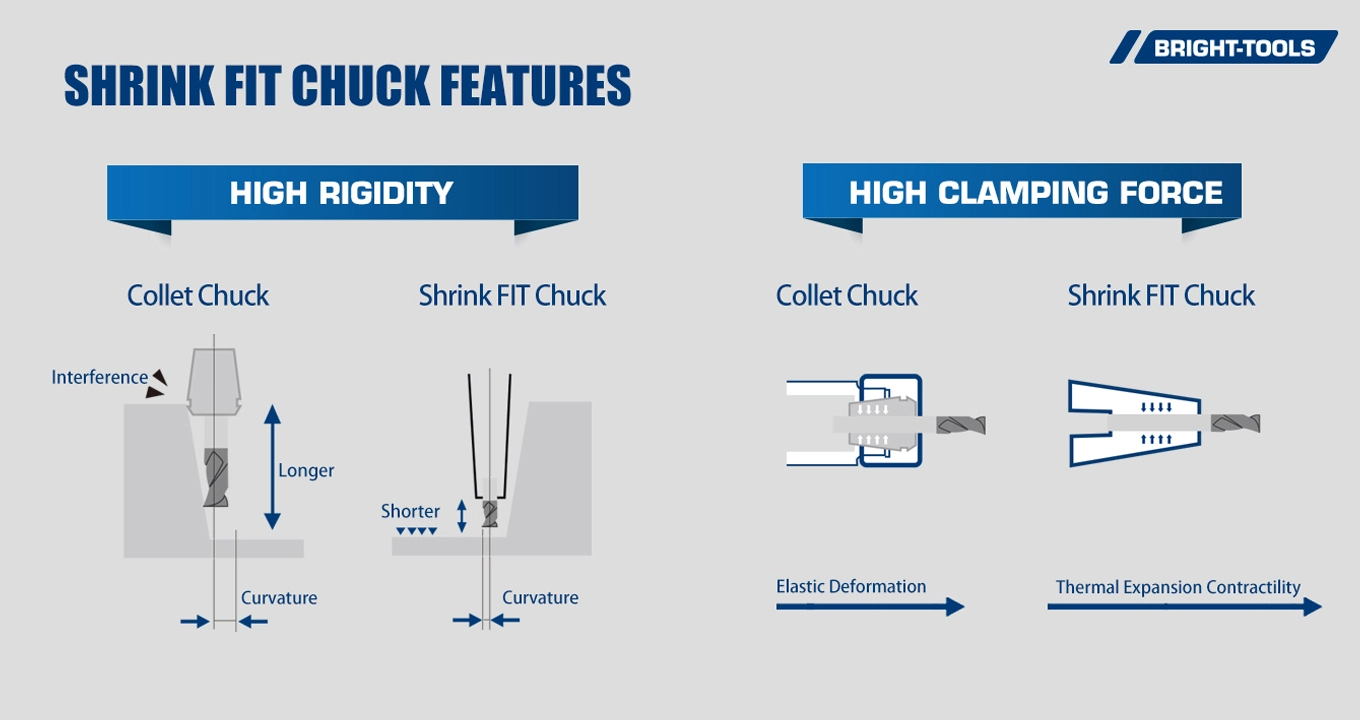

Shrink Fit Chuck Features of Heat Shrink Holders

Shrink Fit Chuck of Heat Shrink Machine For Tool Holders

SPECIFICATION OF HSK-A SHRINK FIT CHUCK 4.5°, COOLANT

SPECIFICATION OF HSK-A SHRINK FIT CHUCK 4.5°, COOLANT

SizedDD1LL2L1NG
HSK63A-SF03-80K315208054---
HSK63A-SF04-80K415208054---
HSK63A-SF05-80K515208054---
HSK63A-SF06-80K62126.580543610M5
HSK63A-SF08-80K82126.580543610M6
HSK63A-SF10-85K102430.585594210M8x1
HSK63A-SF12-90K12243190644710M10x1
HSK63A-SF14-90K14273490644710M10x1
HSK63A-SF16-95K16273495695010M12x1
HSK63A-SF18-95K18334195695010M12x1
HSK63A-SF20-100K203342100745210M16x1
HSK63A-SF25-115K254452.5115895810M16x1
HSK63A-SF32-120K324452.5120946210M16x1









HSK63A-SF03-120K3152012094---
HSK63A-SF04-120K4152012094---
HSK63A-SF05-120K5152012094---
HSK63A-SF06-120K62127120943610M5
HSK63A-SF08-120K82127120943610M6
HSK63A-SF10-120K102432120944210M8x1
HSK63A-SF12-120K122432120944710M10x1
HSK63A-SF14-120K142734120944710M10x1
HSK63A-SF16-120K162734120945010M12x1
HSK63A-SF18-120K183342120945010M12x1
HSK63A-SF20-120K203342120945210M16x1
HSK63A-SF25-120K254452.5120945810M16x1









HSK63A-SF03-160K31525160134---
HSK63A-SF04-160K41525160134---
HSK63A-SF05-160K51525160134---
HSK63A-SF06-160K621321601343610M5
HSK63A-SF08-160K821321601343610M6
HSK63A-SF10-160K1024341601344210M8x1
HSK63A-SF12-160K1224341601344710M10x1
HSK63A-SF14-160K1427421601344710M10x1
HSK63A-SF16-160K1627421601345010M12x1
HSK63A-SF18-160K1833511601345010M12x1
HSK63A-SF20-160K2033511601345210M16x1
HSK63A-SF25-160K254452.51601345810M16x1
HSK63A-SF32-160K324452.51601346210M16x1









HSK100A-SF06-85K62126.585563610M5
HSK100A-SF08-85K82126.585563610M6
HSK100A-SF10-90K102430.590614210M8x1
HSK100A-SF12-95K12243195664710M10x1
HSK100A-SF14-95K14273495664710M10x1
HSK100A-SF16-100K162734100715010M12x1
HSK100A-SF18-100K183342100715010M12x1
HSK100A-SF20-105K203342105765210M16x1
HSK100A-SF25-115K254453115865810M16x1
HSK100A-SF32-120K324453120916210M16x1









HSK100A-SF06-120K62127120913610M5
HSK100A-SF08-120K82127120913610M6
HSK100A-SF10-120K102432120914210M8x1
HSK100A-SF12-120K122432120914710M10x1
HSK100A-SF14-120K142734120914710M10x1
HSK100A-SF16-120K162734120915010M12x1
HSK100A-SF18-120K183342120915010M12x1
HSK100A-SF20-120K203342120915210M16x1
HSK100A-SF25-120K254453120915810M16x1









HSK100A-SF06-160K621321601313610M5
HSK100A-SF08-160K821321601313610M6
HSK100A-SF10-160K1024341601314210M8x1
HSK100A-SF12-160K1224341601314710M10x1
HSK100A-SF14-160K1427421601314710M10x1
HSK100A-SF16-160K1627421601315010M12x1
HSK100A-SF18-160K1833511601315010M12x1
HSK100A-SF20-160K2033511601315210M16x1
HSK100A-SF25-160K2544601601315810M16x1
HSK100A-SF32-160K3244601601316210M16x1
