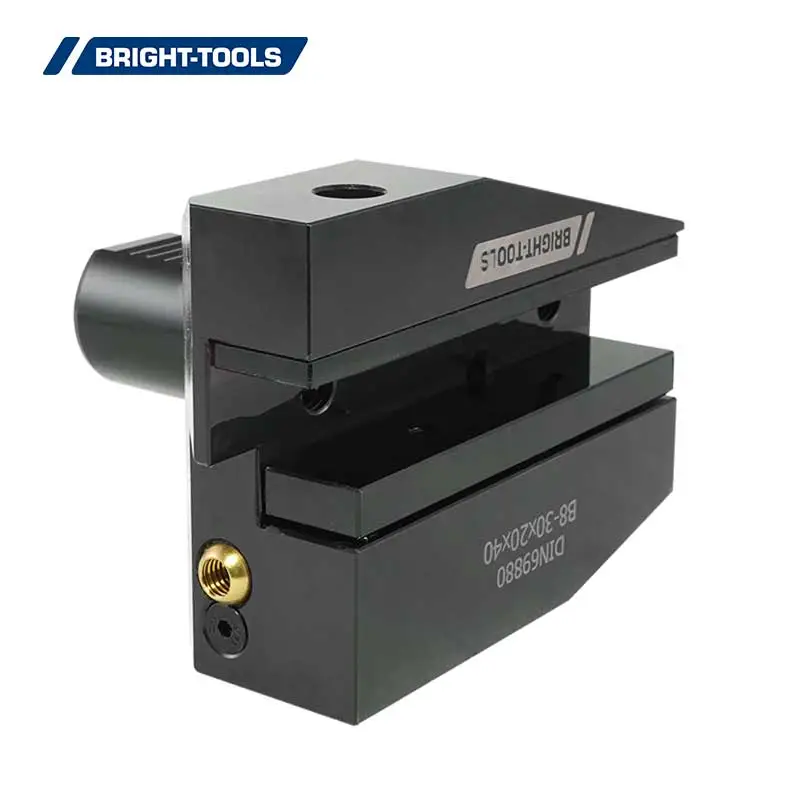

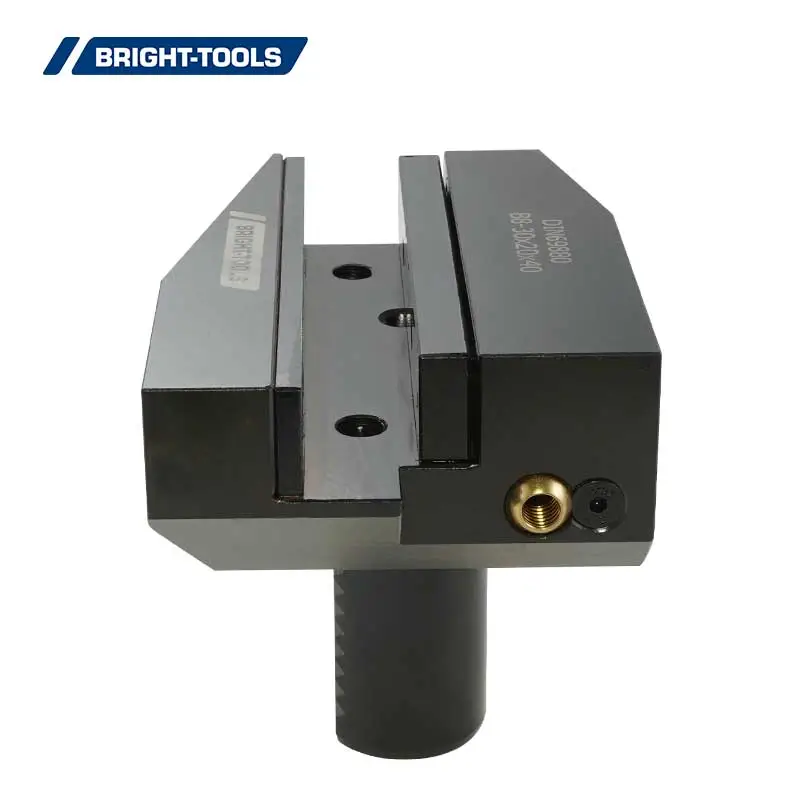

Radial Holder Form B8 Inverted Left, Long

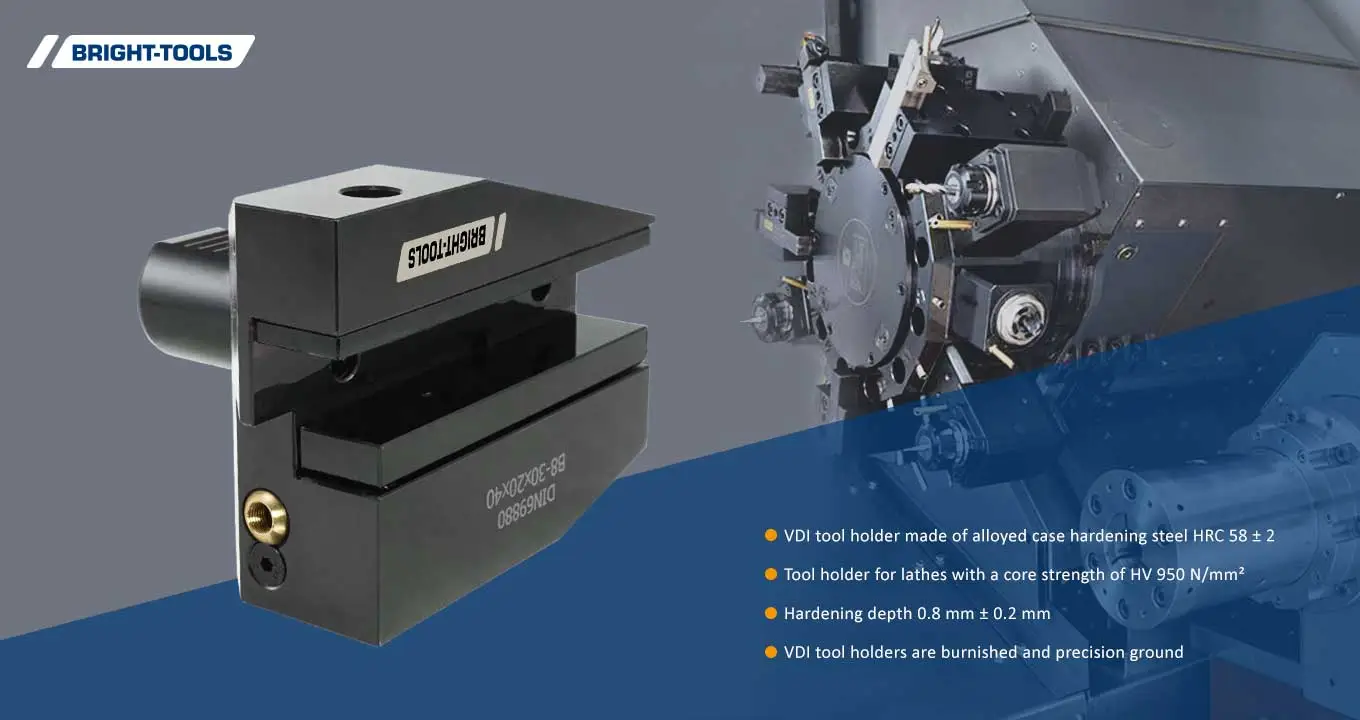

Radial Holder Form B8 Inverted Left, Long, as CNC lathe accessory, made of alloy case-hardened steel, burnished. The Radial Holder Form B8 Inverted Left, Long is an indispensable tool holder used in milling and drilling operations on CNC machines. Its extended length and compact design allows for easier access and improved visibility during the machining process. Its excellent rigidity and stability minimize the risk of vibration and chatter during high-speed cutting operations. The Radial Holder Form B8 Inverted Left, Long is a reliable and stable performer, favored by manufacturers searching for highly precise and efficient tool holding.

Buy Radial Holder Form B8 Inverted Left, Long

TECHNICAL DRAWING OF RADIAL HOLDER FORM B8 INVERTED LEFT, LONG

High Concentricity

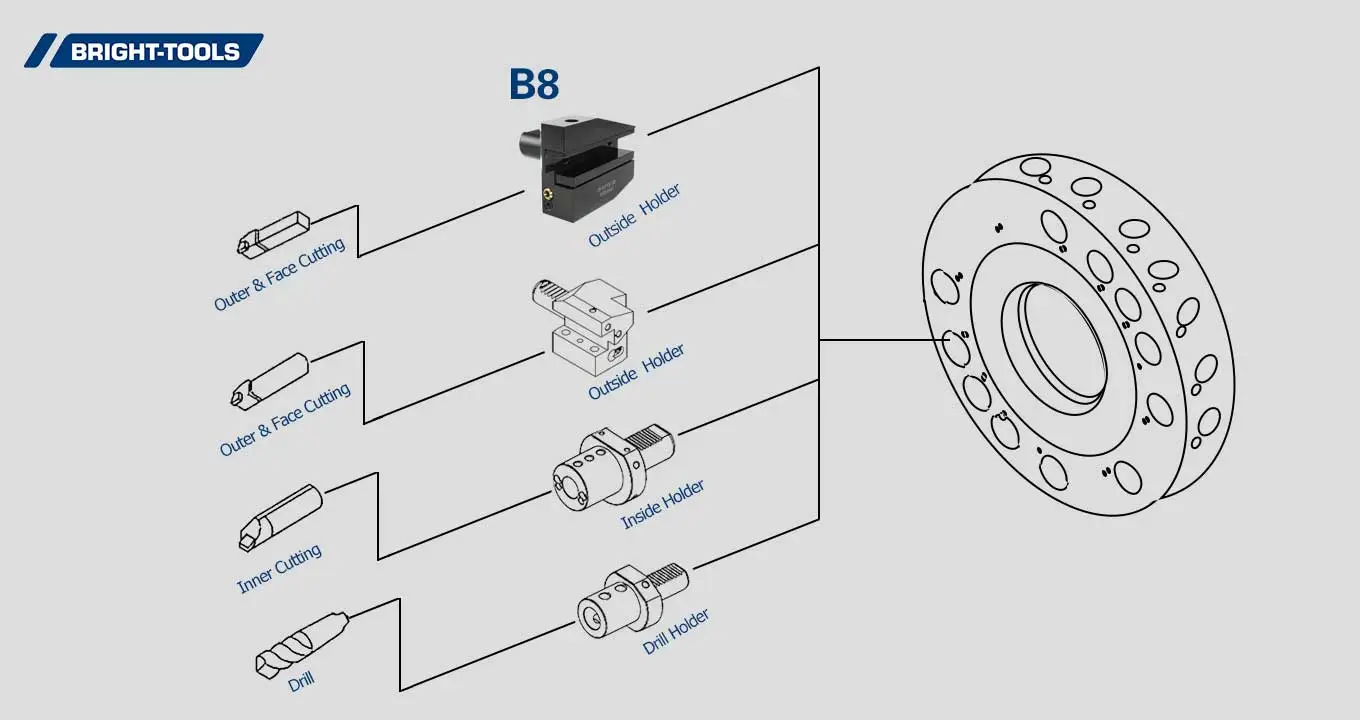

Product Structure
Radial Holder Form B8 Inverted Left, Long

High Concentricity Of Driven Tools

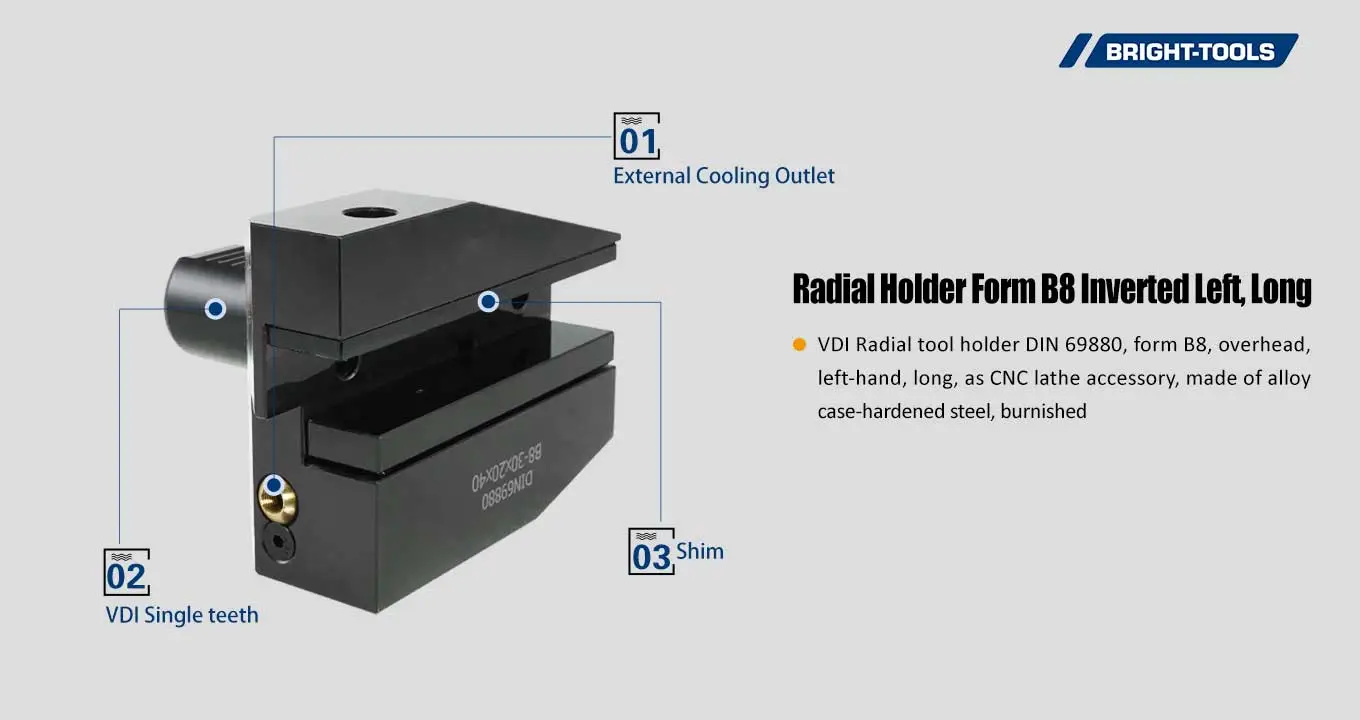

Product Structure Of Static Tools

Radial Holder Form B8 Inverted Left, Long Of Mt Driven Tools

SPECIFICATION OF RADIAL HOLDER FORM B8 INVERTED LEFT, LONG

SPECIFICATION OF RADIAL HOLDER FORM B8 INVERTED LEFT, LONG


Sized1b1b2b3h1h5h6l1l2
B8-16x12x2416583951220221324
B8-16x12x3416583951220222334
B8-20x16x30207550716/1225301630
B8-20x16x40207550716/1225302640
B8-25x16x30257550716/1225301630
B8-25x16x40257550716/1225302640
B8-30x20x4030100651020/1635382240
B8-30x20x6030100651020/1635384260
B8-40x25x444011875.512.525/2042.5482244
B8-50x32x5550130801632/2550603055
B8-60x32x606014582.51632/2562.562.53060
B8-80x40x75801901102040/3280804075



Sized1b1b2b3h1h5h6l1l2
B8-20x5/8"x3020755075/8"25301630
B8-30x3/4"x403010065103/4"35382240
B8-40x1"x444011875.512.51"42.5482244
B8-50x1-1/4" x555013080161-1/4"50603055
B8-60x1-1/4" x606014582.5161-1/4"62.562.53060
