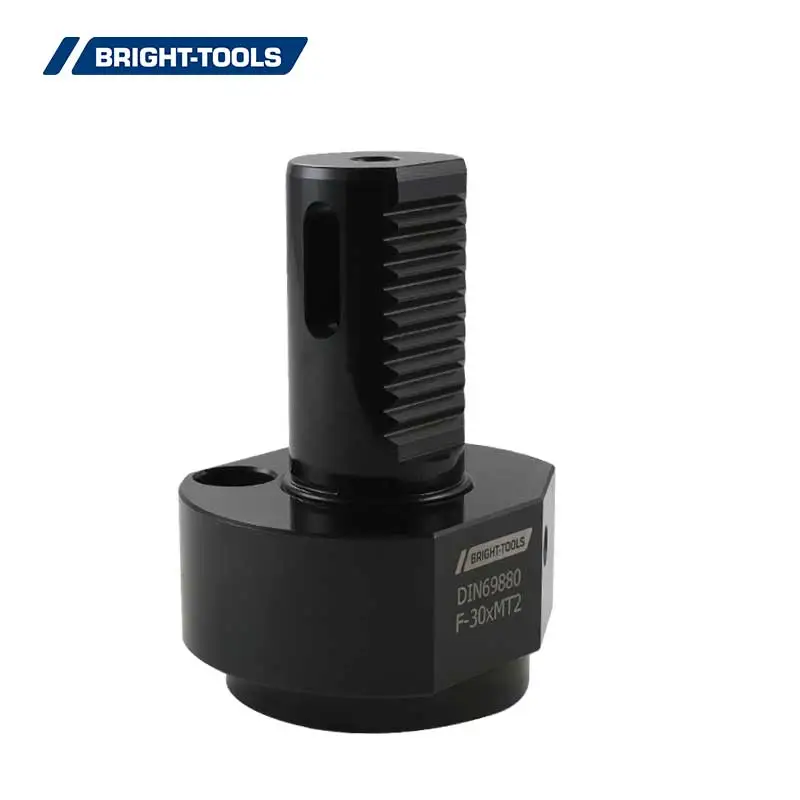

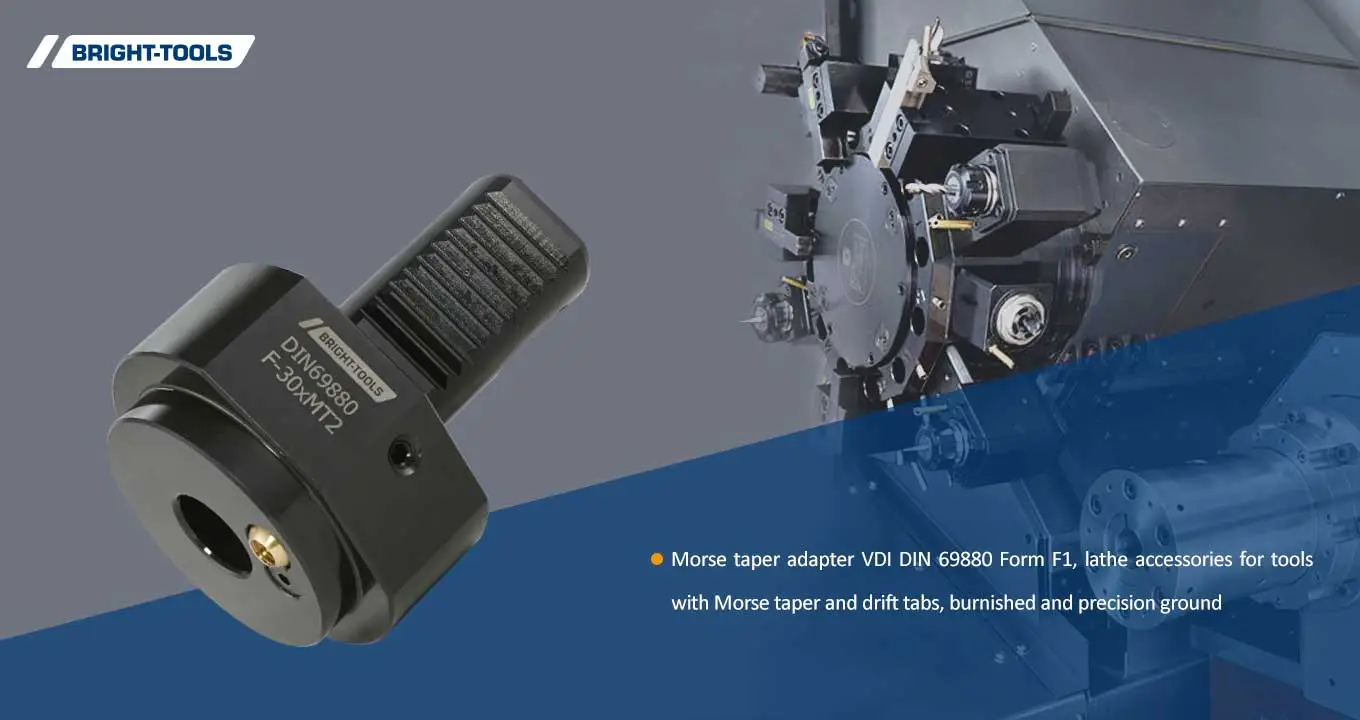

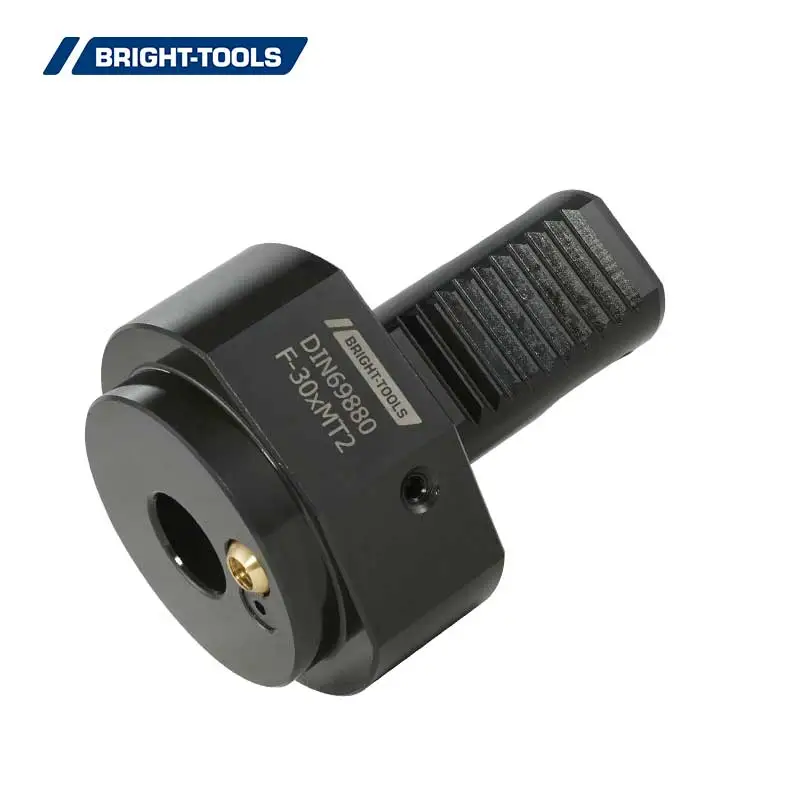

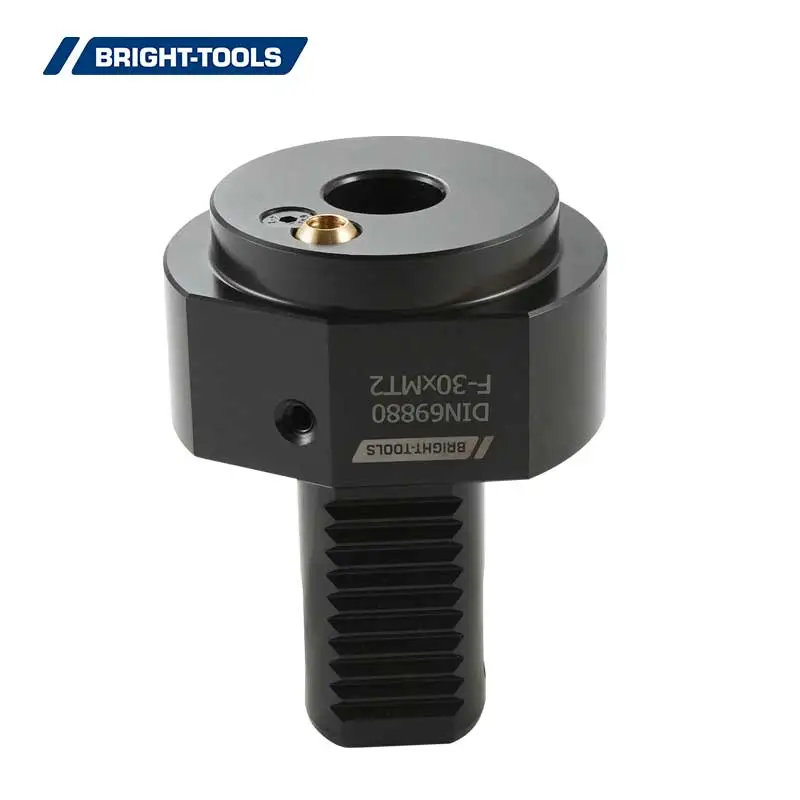

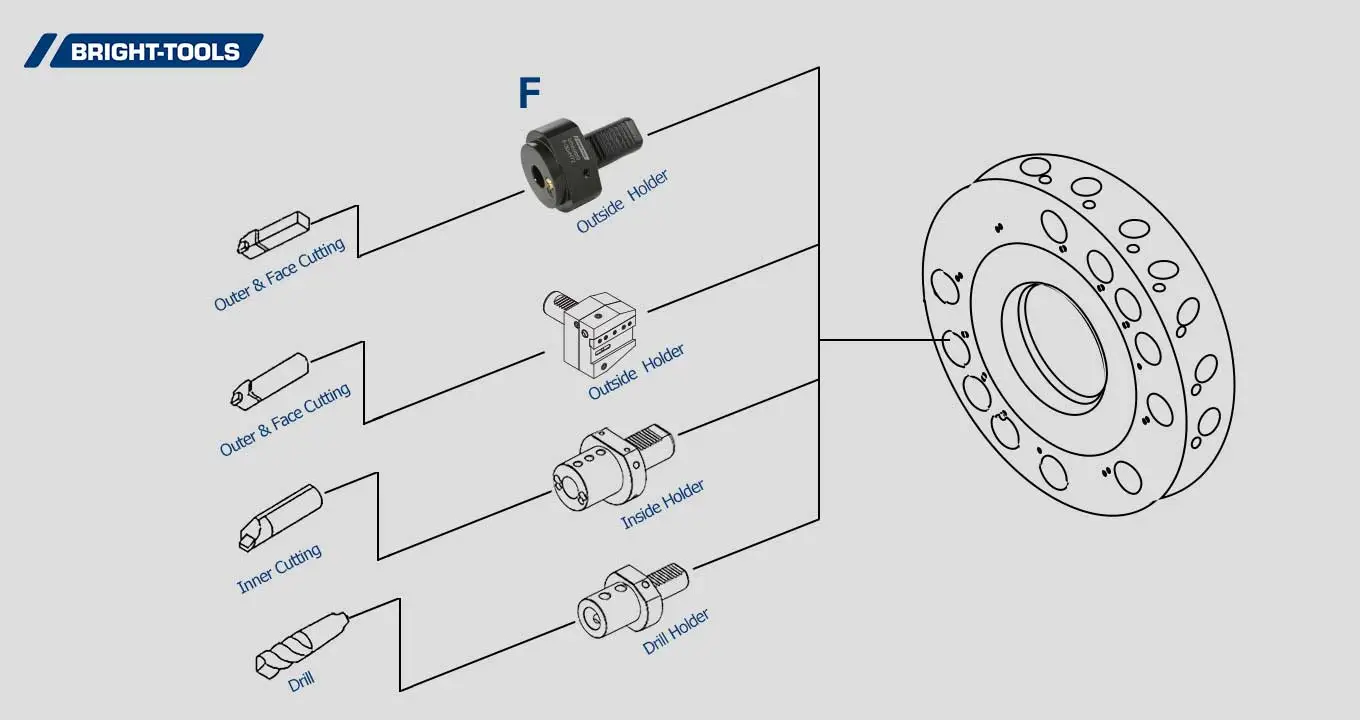

Morse taper adapter VDI DIN 69880 Form F1, lathe accessories for tools with Morse taper and drift tabs, burnished and precision ground.

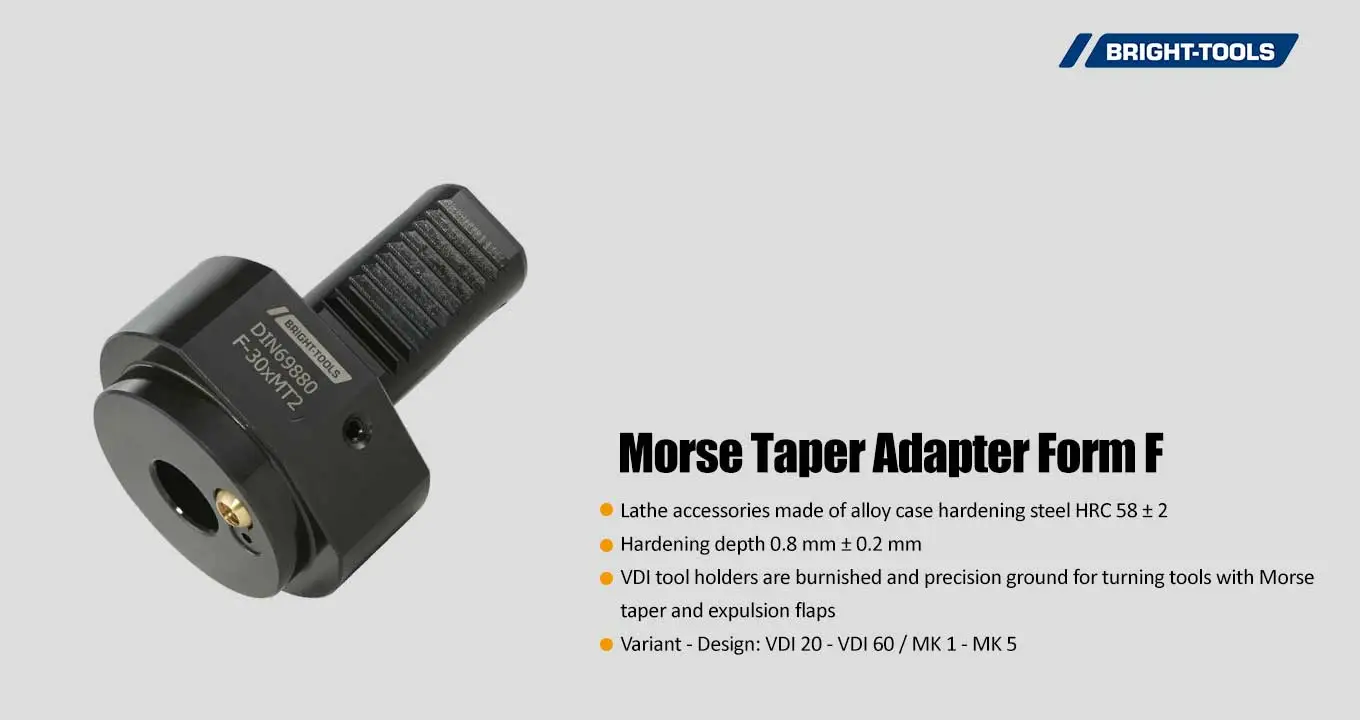

Lathe accessories made of alloy case hardening steel HRC 58 ± 2.
Hardening depth 0.8 mm ± 0.2 mm.
VDI tool holders are burnished and precision ground.
for turning tools with Morse taper and expulsion flaps.
Variant - Design: VDI 20 - VDI 60 / MK 1 - MK 5.

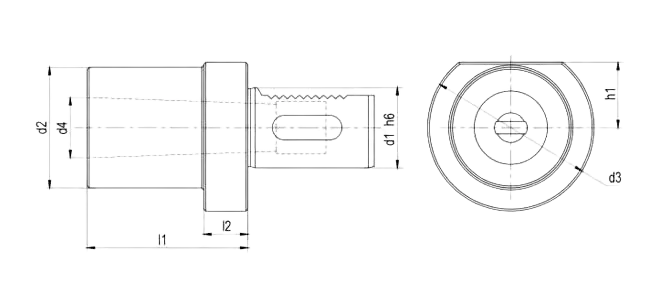

| Size | d1 | d2 | d3 | MK | d4 | h1 | l1 | l2 |
| F-30xMT1 | 30 | - | 68 | 1 | 12.065 | 28 | 27 | - |
| F-30xMT2 | 30 | 55 | 68 | 2 | 17.78 | 28 | 36 | 27 |
| F-30xMT3 | 30 | 55 | 68 | 3 | 23.825 | 28 | 66 | 41 |
| F-40xMT1 | 40 | 55 | 83 | 1 | 12.065 | 32.5 | 23 | 22 |
| F-40xMT2 | 40 | 55 | 83 | 2 | 17.78 | 32.5 | 36 | 22 |
| F-40xMT3 | 40 | 58 | 83 | 3 | 23.825 | 32.5 | 36 | 22 |
| F-40xMT4 | 40 | 68 | 83 | 4 | 31.267 | 32.5 | 80 | 22 |
| F-50xMT2 | 50 | 55 | 98 | 2 | 17.78 | 35 | 36 | 30 |
| F-50xMT3 | 50 | 58 | 98 | 3 | 23.825 | 35 | 45 | 30 |
| F-50xMT4 | 50 | 68 | 98 | 4 | 31.267 | 35 | 55 | 30 |
| F-50xMT5 | 50 | 75 | 98 | 5 | 44.399 | 35 | 72 | - |
| F-60xMT2 | 60 | 55 | 123 | 2 | 17.78 | 42.5 | 35 | 30 |
| F-60xMT3 | 60 | 58 | 123 | 3 | 23.825 | 42.5 | 45 | 30 |
| F-60xMT4 | 60 | 68 | 123 | 4 | 31.267 | 42.5 | 55 | 30 |
| F-60xMT5 | 60 | 98 | 123 | 5 | 44.399 | 42.5 | 64 | 30 |
