ER Collet Set

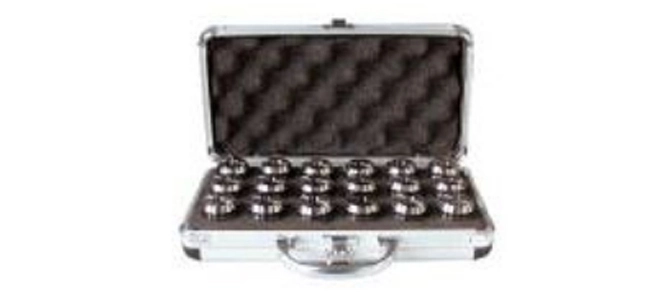

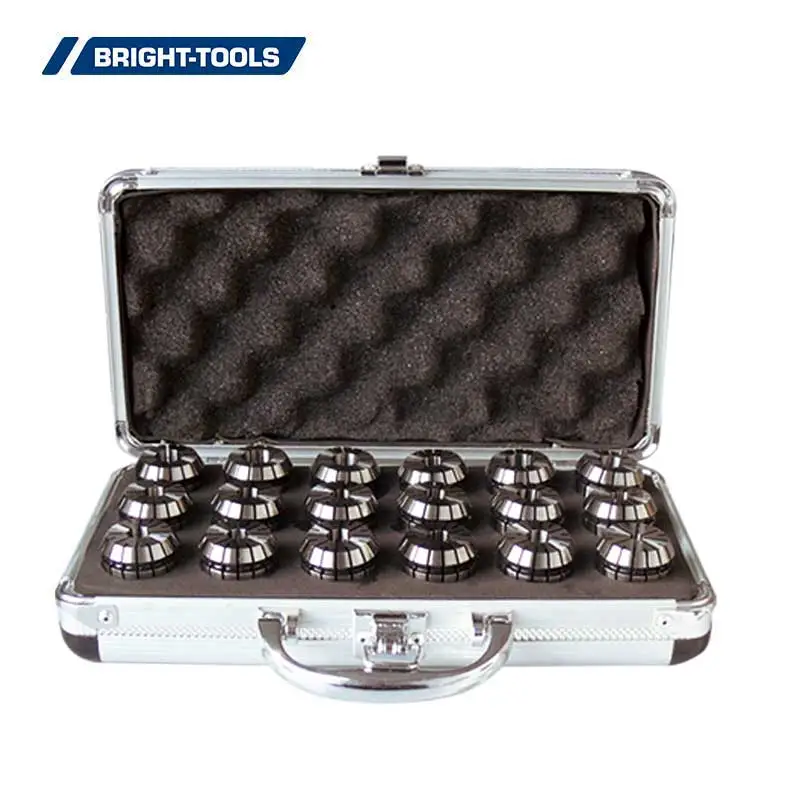

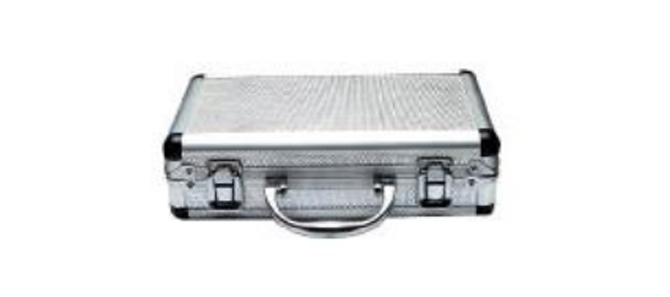

BRIGHT-TOOLS ER collet set in aluminum box is a precision tool holding solution designed for CNC milling, drilling, tapping, and reaming applications that require stable and accurate tool clamping. Manufactured in accordance with DIN 6499 standards, each ER collet ensures reliable interchangeability and consistent performance across a wide range of tool holders. The set is carefully packaged in a durable aluminum box for organized storage and protection in industrial environments.

With high precision options available at TIR 0.008 and TIR 0.005, the ER collet set delivers excellent concentricity, improved machining accuracy, and reduced vibration during high-speed cutting operations, making it a dependable choice for professional metalworking applications.

Buy ER Collet Set 

SPECIFICATION OF ER COLLET SET

Size	Collet Diameter	PCS/SET
ER8-9 PCS	1,1.5,2,2.5,3,3.5,4,4.5,5	9
ER8-5 PCS	1,2,3,4,5	5
ER11-7 PCS	1,2,3,4,5,6,7	7
ER11-13 PCS	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7	13
ER16-10 PCS	1,2,3,4,5,6,7,8,9,10	10
ER20-13 PCS	1,2,3,4,5,6,7,8,9,10,11,12,13	13
ER25-15 PCS	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16	15
ER32-18 PCS	3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20	18
ER40-23 PCS	4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26	23

Inch Size
Size	Collet Diameter	PCS/SET
ER8-6 PCS (inch)	1/32, 1/16, 3/32, 1/8, 5/32, 3/16	6
ER16-8 PCS (inch)	1/8, 5/32, 3/16, 7/32, 1/4,5/16,11/32,3/8	8
ER20-11 PCS (inch)	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,7/16,1/2	11
ER25-9 PCS (inch)	1/8, 3/16, 1/4,5/16,3/8,7/16,1/2,9/16,5/8	9
ER32-18 PCS (inch)	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,13/32, 7/16,15/32,1/2,9/16,5/8,11/16,23/32,3/4	18
ER40-23 PCS (inch)	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,13/32,7/16,15/32, 1/2,9/16,5/8,11/16,23/32,3/4,13/16,27/32,7/8,29/32,1"	23
