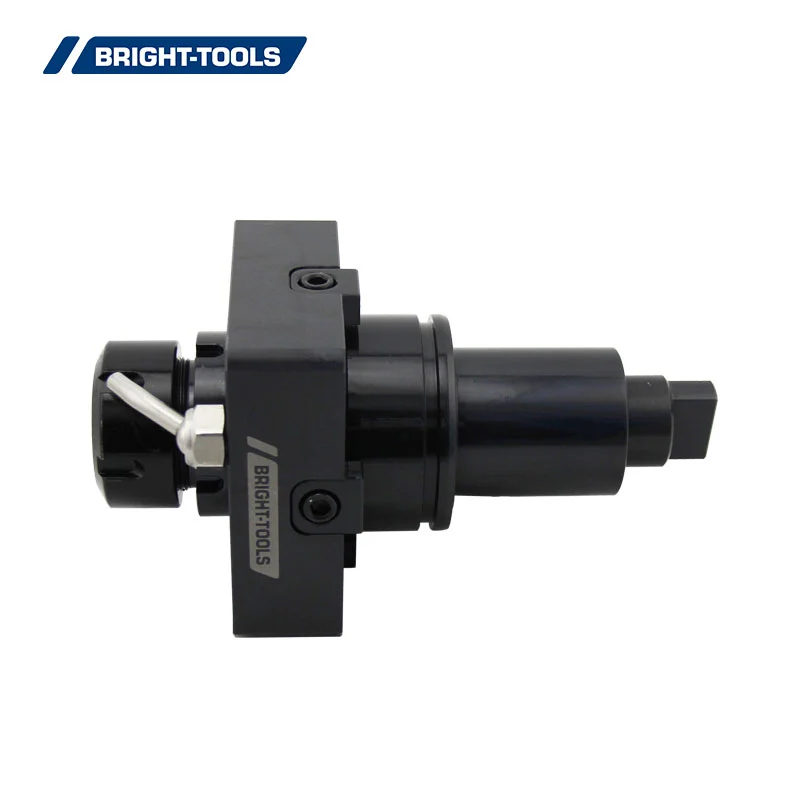

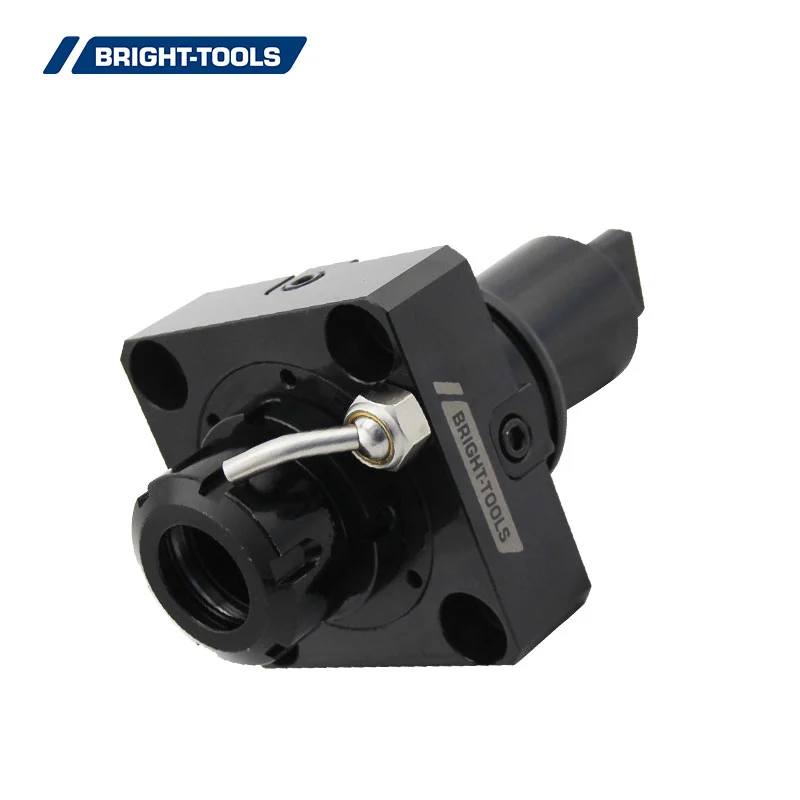

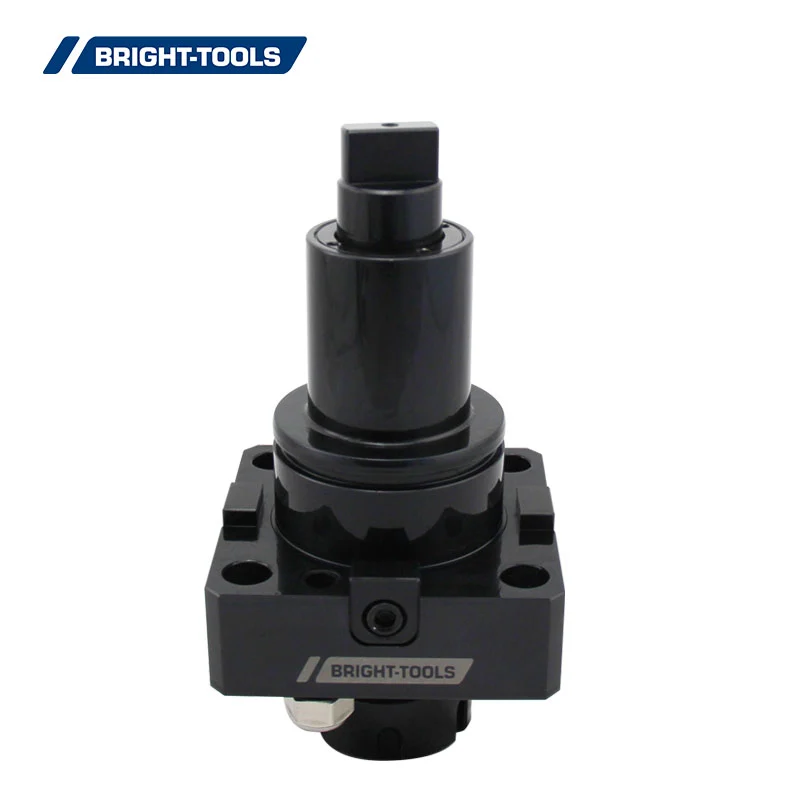

BMT Axial Driven Head, DIN 1809
BMT-P-driven tools are used on a wide range of turning centers for milling, drilling, and tapping operations. Straight-driven head is connected with the turret with face mounting or OD mounting for axial or radial machining, used with ER collets for cylindrical cutting tools.
Turret Size: BMT45 BMT55 BMT65 BMT75 BMT85
Driven coupling: DIN 1809
Direction: Axial 0 deg.
Output: ER25 ER32
Max Speed: 6000 RPM
Coolant: external, internal can be made by request.
