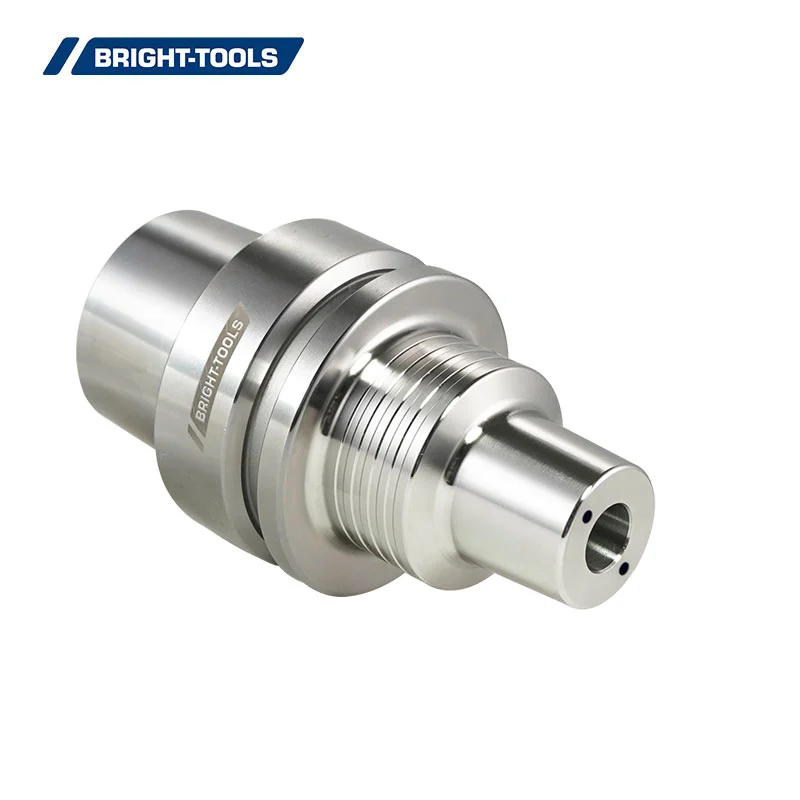

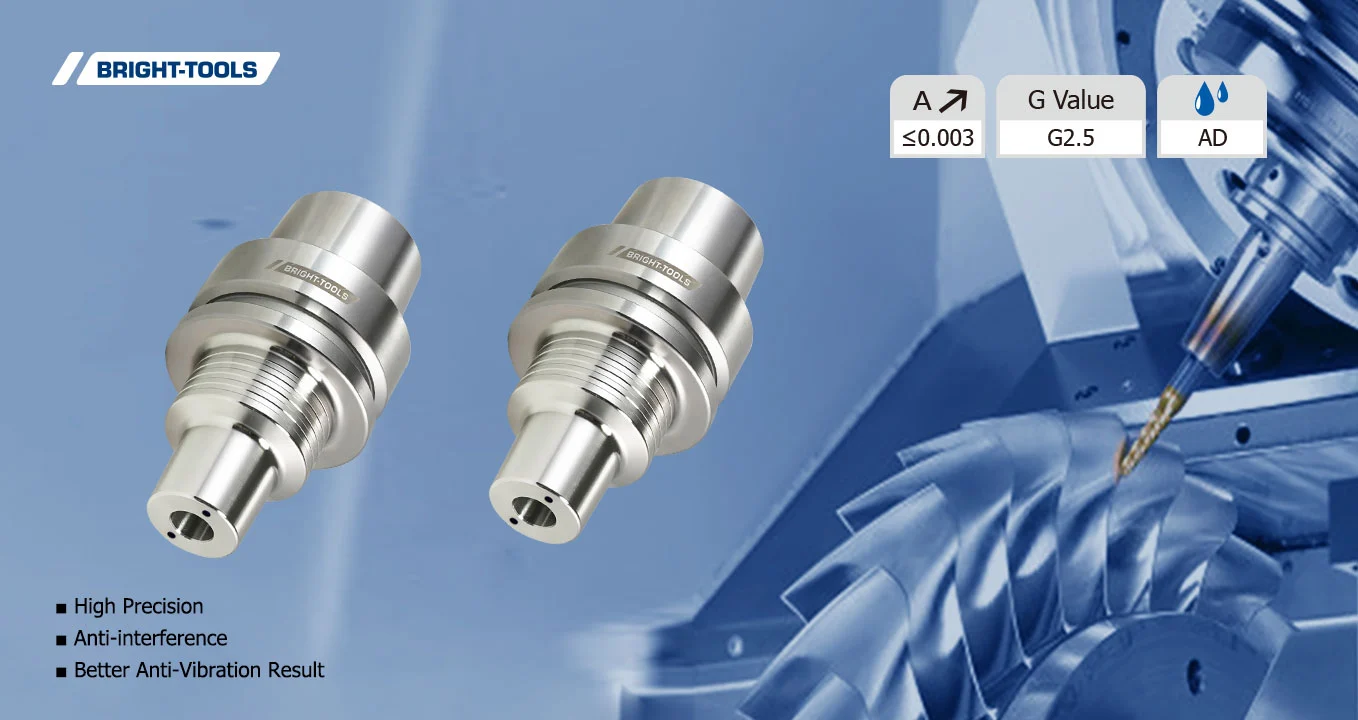

3° slim Integrated shrink fit chucks with slim noses can access close to walls and avoid interference problems. can select the ideal holder for your specific workpiece shape and machining conditions, large diameter is better for heavy-duty machining, and small diameter is better for micro-machining.
1, rich size variety.
2, thick root and slim nose.
3, applied both heavy-duty machining and micro machining.
4, with a coolant channel.
| Size | D | C | L | M | L1 | C1 | C2 | H | h |
| HSK63F-SFFB3-75-M22 | 3 | 9.5 | 75 | 22 | 27 | 11.8 | 25 | 9 | 58 |
| HSK63F-SFFB3-95-M42 | 3 | 9.5 | 95 | 42 | 27 | 13.9 | 25 | 9 | 73 |
| HSK63F-SFFB3-120-M67 | 3 | 9.5 | 120 | 67 | 27 | 16.5 | 25 | 9 | 98 |
| HSK63F-SFFB4-75-M22 | 4 | 12 | 75 | 22 | 27 | 14.3 | 25 | 12 | 53 |
| HSK63F-SFFB4-95-M42 | 4 | 12 | 95 | 42 | 27 | 16.4 | 25 | 12 | 78 |
| HSK63F-SFFB4-120-M67 | 4 | 12 | 120 | 67 | 27 | 19 | 25 | 12 | 98 |
| HSK63F-SFFB6-75-M22 | 6 | 14 | 75 | 22 | 27 | 16.3 | 32 | 18 | 58 |
| HSK63F-SFFB8-75-M22 | 8 | 18 | 75 | 22 | 27 | 20.3 | 32 | 24 | 58 |
| HSK63F-SFFB10-75-M22 | 10 | 22 | 75 | 22 | 27 | 24.3 | 32 | 30 | 54 |
| HSK63F-SFFB12-75-M22 | 12 | 26 | 75 | 22 | 27 | 28.3 | 42 | 30 | 53 |
| HSK63F-SFFB16-75-M22 | 16 | 32 | 75 | 22 | 27 | 34.3 | 42 | 32 | 53 |
| HSK63F-SFFB20-75-M22 | 20 | 38 | 75 | 22 | 27 | 40.3 | 50 | 40 | 53 |
| HSK63F-SFFB25-75-M22 | 25 | 45 | 75 | 22 | 27 | 47.3 | 50 | 45 | 53 |
