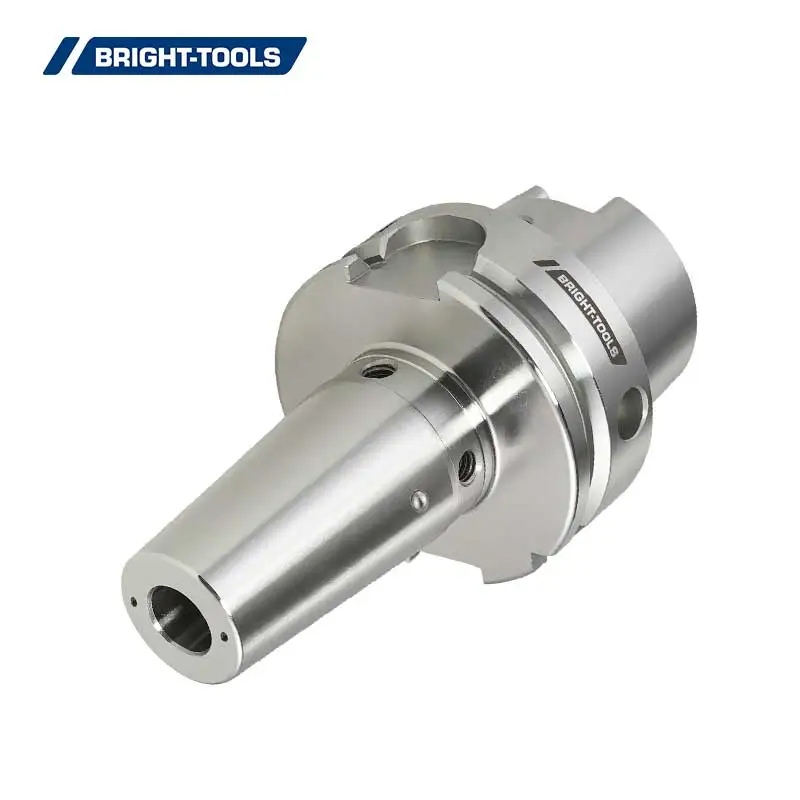

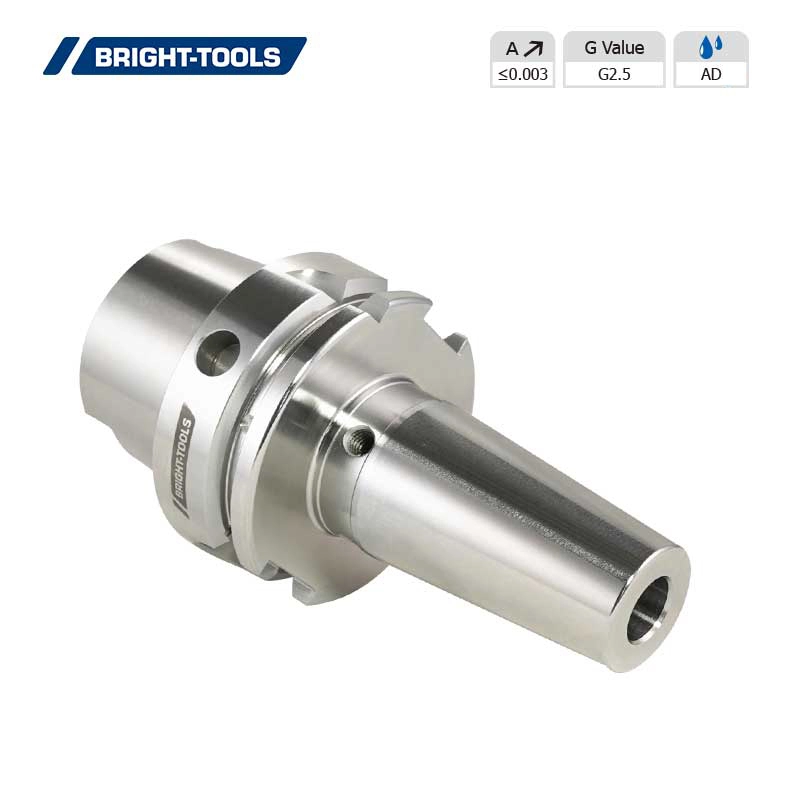

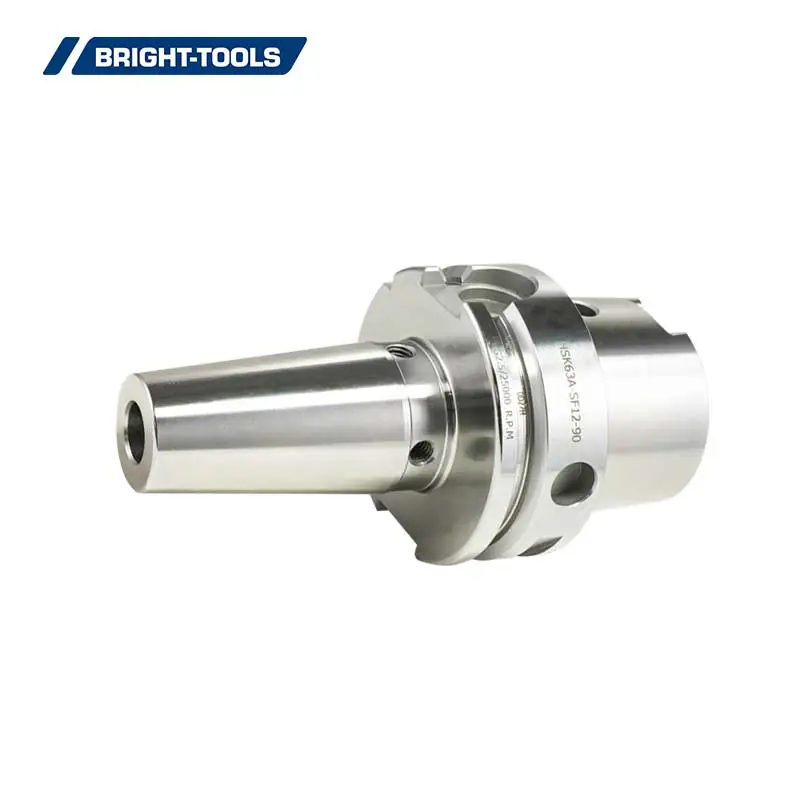

HSK-A Shrink Fit Chuck 4.5°

The HSK-A Shrink Fit Chuck 4.5° is a type of chuck designed for the HSK-A spindle interface. It securely holds cutting tools such as drills, end mills, or reamers in place during high-speed machining operations. The 4.5° angle provides added stability and precision, ensuring optimal machining accuracy.

Buy HSK-A Shrink Fit Chuck 4.5°

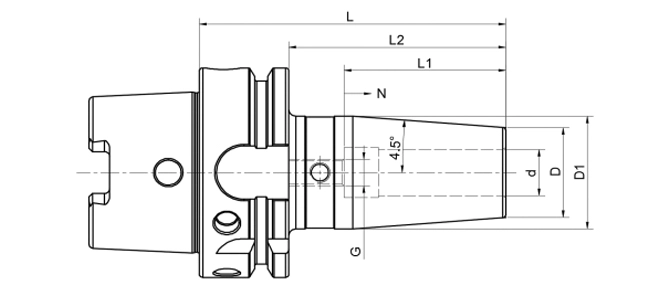

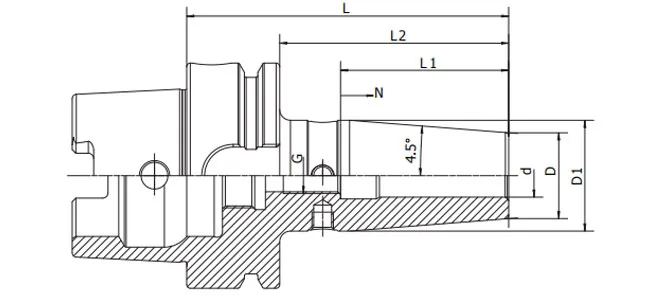

TECHNICAL DRAWING OF HSK-A SHRINK FIT CHUCK 4.5°

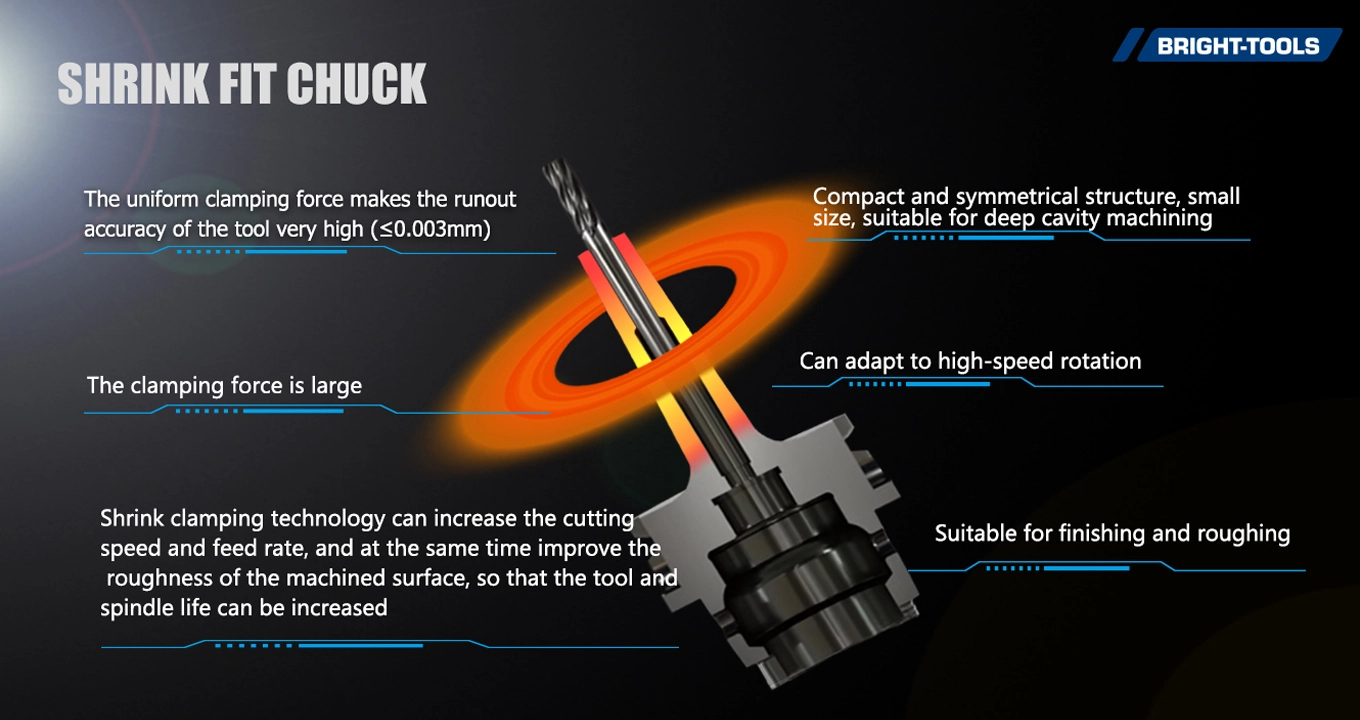

SHRINK FIT CHUCK
FEATURES
ADVANTAGES
WORKING PRINCIPLE

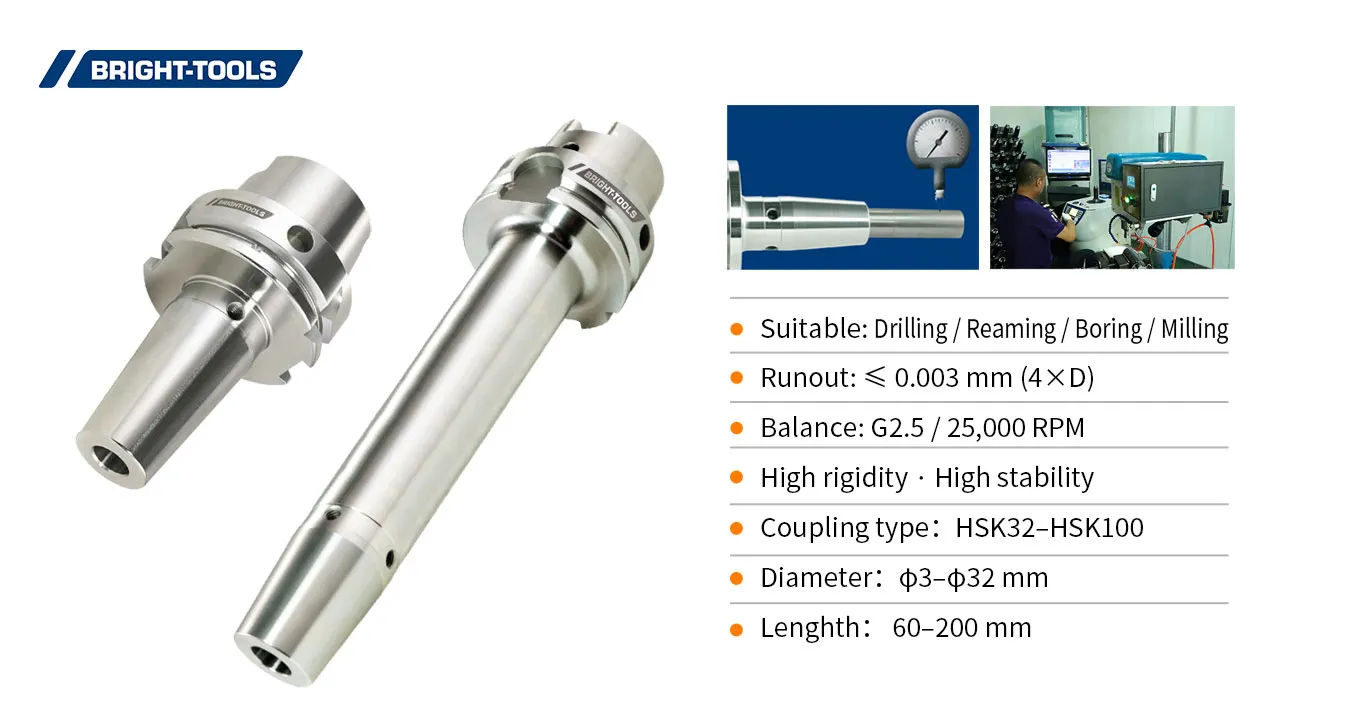

Bright Tools Heat Shrink Machine For Tool Holders

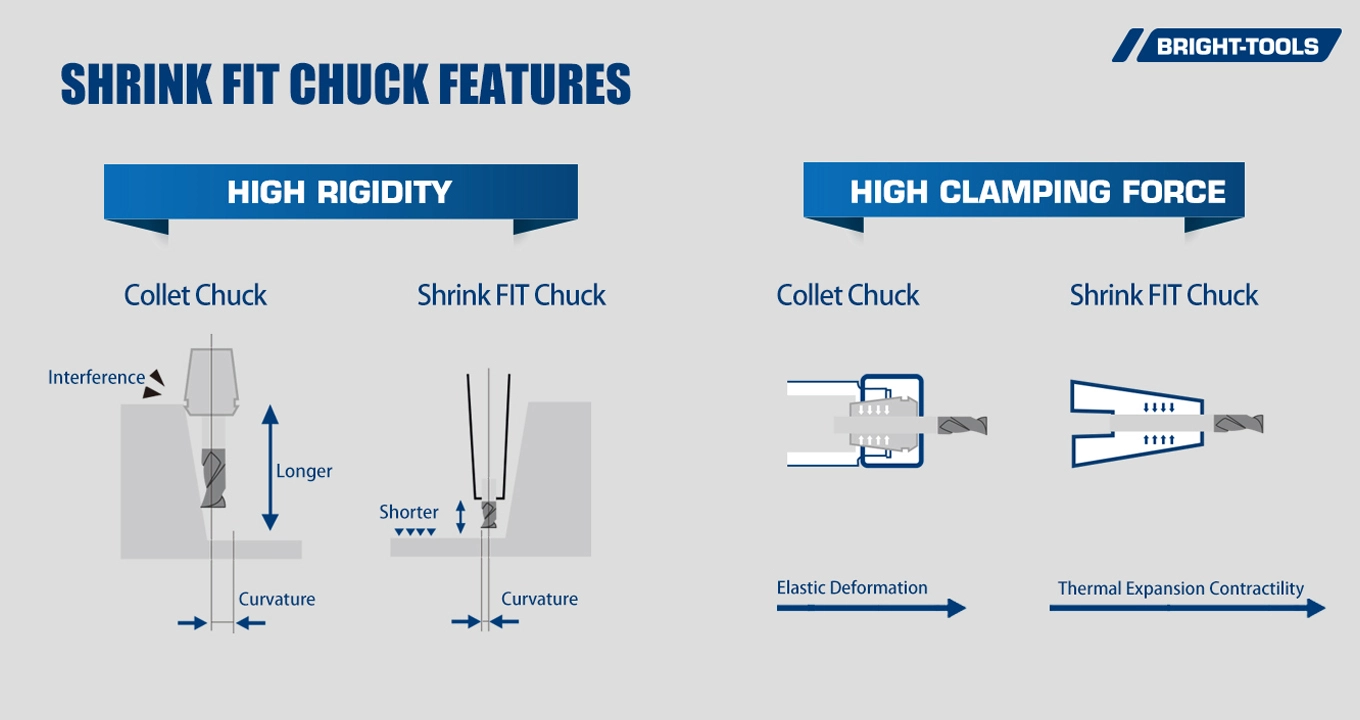

Shrink Fit Chuck Features of Heat Shrink Holders

Shrink Fit Chuck of Heat Shrink Machine For Tool Holders

Shrink Fit Chuck of Heat Shrink Machine For Tool Holders

SPECIFICATION OF HSK-A SHRINK FIT CHUCK 4.5°

SPECIFICATION OF HSK-A SHRINK FIT CHUCK 4.5°

SizedDD1LL2L1NG
HSK32A-SF03-65315206545---
HSK32A-SF04-65415206545---
HSK32A-SF05-65515206545---
HSK32A-SF06-756212675553610M5
HSK32A-SF08-758212675553610M6
HSK32A-SF10-7510242975554210M8x1
HSK32A-SF12-801224298060475M10x1









HSK40A-SF03-60315206040---
HSK40A-SF04-60415206040---
HSK40A-SF05-60515206040---
HSK40A-SF06-806212780603610M5
HSK40A-SF08-808212780603610M6
HSK40A-SF10-8010243280604210M8x1
HSK40A-SF12-9012243290704710M10x1
HSK40A-SF14-9014273490704710M10x1
HSK40A-SF16-9016273490705010M12x1









HSK50A-SF03-80315208054---
HSK50A-SF04-80415208054---
HSK50A-SF05-80515208054---
HSK50A-SF06-806212780543610M5
HSK50A-SF08-808212780543610M6
HSK50A-SF10-8510243285594210M8x1
HSK50A-SF12-9012243290644710M10x1
HSK50A-SF14-9014273490644710M10x1
HSK50A-SF16-9516273495695010M12x1
HSK50A-SF18-9518334295695010M12x1
HSK50A-SF20-100203342100745210M16x1









HSK63A-SF03-80315208054---
HSK63A-SF04-80415208054---
HSK63A-SF05-80515208054---
HSK63A-SF06-8062126.580543610M5
HSK63A-SF08-8082126.580543610M6
HSK63A-SF10-85102430.585594210M8x1
HSK63A-SF12-9012243190644710M10x1
HSK63A-SF14-9014273490644710M10x1
HSK63A-SF16-9516273495695010M12x1
HSK63A-SF18-9518334195695010M12x1
HSK63A-SF20-100203342100745210M16x1
HSK63A-SF25-115254452.5115895810M16x1
HSK63A-SF32-120324452.5120946210M16x1









HSK63A-SF03-1203152012094---
HSK63A-SF04-1204152012094---
HSK63A-SF05-1205152012094---
HSK63A-SF06-12062127120943610M5
HSK63A-SF08-12082127120943610M6
HSK63A-SF10-120102432120944210M8x1
HSK63A-SF12-120122432120944710M10x1
HSK63A-SF14-120142734120944710M10x1
HSK63A-SF16-120162734120945010M12x1
HSK63A-SF18-120183342120945010M12x1
HSK63A-SF20-120203342120945210M16x1
HSK63A-SF25-120254452.5120945810M16x1









HSK63A-SF03-16031525160134---
HSK63A-SF04-16041525160134---
HSK63A-SF05-16051525160134---
HSK63A-SF06-160621321601343610M5
HSK63A-SF08-160821321601343610M6
HSK63A-SF10-1601024341601344210M8x1
HSK63A-SF12-1601224341601344710M10x1
HSK63A-SF14-1601427421601344710M10x1
HSK63A-SF16-1601627421601345010M12x1
HSK63A-SF18-1601833511601345010M12x1
HSK63A-SF20-1602033511601345210M16x1
HSK63A-SF25-160254452.51601345810M16x1
HSK63A-SF32-160324452.51601346210M16x1









HSK63A-SF06-200621322001743610M5
HSK63A-SF08-200821322001743610M6
HSK63A-SF10-2001024342001744210M8x1
HSK63A-SF12-2001224342001744710M10x1
HSK63A-SF14-2001427422001744710M10x1
HSK63A-SF16-2001627422001745010M12x1
HSK63A-SF18-2001833512001745010M12x1
HSK63A-SF20-2002033512001745210M16x1
HSK63A-SF25-200254452.52001745810M16x1
HSK63A-SF32-200324452.52001746210M16x1









HSK80A-SF06-856212785593610M5
HSK80A-SF08-858212785593610M6
HSK80A-SF10-9010243290644210M8x1
HSK80A-SF12-9512243295694710M10x1
HSK80A-SF14-9514273495694710M10x1
HSK80A-SF16-100162734100745010M12x1
HSK80A-SF18-100183342100745010M12x1
HSK80A-SF20-105203342105795210M16x1
HSK80A-SF25-115254453115895810M16x1
HSK80A-SF32-120324453120946210M16x1









HSK100A-SF03-85315208556---
HSK100A-SF04-85415208556---
HSK100A-SF05-85515208556---
HSK100A-SF06-8562126.585563610M5
HSK100A-SF08-8582126.585563610M6
HSK100A-SF10-90102430.590614210M8x1
HSK100A-SF12-9512243195664710M10x1
HSK100A-SF14-9514273495664710M10x1
HSK100A-SF16-100162734100715010M12x1
HSK100A-SF18-100183341100715010M12x1
HSK100A-SF20-105203342105765210M16x1
HSK100A-SF25-115254453115865810M16x1
HSK100A-SF32-120324453120916210M16x1









HSK100A-SF06-12062127120913610M5
HSK100A-SF08-12082127120913610M6
HSK100A-SF10-120102432120914210M8x1
HSK100A-SF12-120122432120914710M10x1
HSK100A-SF14-120142734120914710M10x1
HSK100A-SF16-120162734120915010M12x1
HSK100A-SF18-120183342120915010M12x1
HSK100A-SF20-120203342120915210M16x1
HSK100A-SF25-120254453120915810M16x1









HSK100A-SF06-160621321601313610M5
HSK100A-SF08-160821321601313610M6
HSK100A-SF10-1601024341601314210M8x1
HSK100A-SF12-1601224341601314710M10x1
HSK100A-SF14-1601427421601314710M10x1
HSK100A-SF16-1601627421601315010M12x1
HSK100A-SF18-160183350.51601315010M12x1
HSK100A-SF20-160203350.51601315210M16x1
HSK100A-SF25-1602544601601315810M16x1
HSK100A-SF32-1603244601601316210M16x1









HSK100A-SF06-200621322001713610M5
HSK100A-SF08-200821322001713610M6
HSK100A-SF10-2001024342001714210M8x1
HSK100A-SF12-2001224342001714710M10x1
HSK100A-SF14-2001427422001714710M10x1
HSK100A-SF16-2001627422001715010M12x1
HSK100A-SF18-2001833512001715010M12x1
HSK100A-SF20-2002033512001715210M16x1
HSK100A-SF25-2002544602001715810M16x1
HSK100A-SF32-2003244602001716210M16x1









SizedDD1LL2L1NG
HSK63A-SF1/8-3.15"0.125"0.59"0.79"3.15"2.13"---
HSK63A-SF3/16-3.15"0.187"0.59"0.79"3.15"2.13"---
HSK63A-SF1/4-3.15"0.250"0.83"1.06"3.15"2.13"1.42"0.39"M5
HSK63A-SF5/16-3.15"0.312"0.83"1.06"3.15"2.13"1.42"0.39"M6
HSK63A-SF3/8-3.35"0.375"0.94"1.26"3.35"2.32"1.65"0.39"M8x1
HSK63A-SF1/2-3.54"0.500"1.06"1.34"3.54"2.52"1.85"0.39"M10x1
HSK63A-SF5/8-3.74"0.625"1.06"1.34"3.74"2.72"1.97"0.39"M12x1
HSK63A-SF3/4-3.94"0.750"1.30"1.65"3.94"2.91"2.05"0.39"M16x1
HSK63A-SF1-4.53"1.000"1.73"2.07"4.53"3.50"2.44"0.39"M16x1









HSK63A-SF1/8-4.72"0.125"0.59"0.79"4.72"3.70"---
HSK63A-SF3/16-4.72"0.187"0.59"0.79"4.72"3.70"---
HSK63A-SF1/4-4.72"0.250"0.83"1.06"4.72"3.70"1.42"0.39"M5
HSK63A-SF5/16-4.72"0.312"0.83"1.06"4.72"3.70"1.42"0.39"M6
HSK63A-SF3/8-4.72"0.375"0.94"1.26"4.72"3.70"1.65"0.39"M8x1
HSK63A-SF1/2-4.72"0.500"1.06"1.34"4.72"3.70"1.85"0.39"M10x1
HSK63A-SF5/8-4.72"0.625"1.06"1.34"4.72"3.70"1.97"0.39"M12x1
HSK63A-SF3/4-4.72"0.750"1.30"1.65"4.72"3.70"2.05"0.39"M16x1
HSK63A-SF1-4.72"1.000"1.73"2.07"4.72"3.70"2.44"0.39"M16x1
HSK63A-SF1-1/4-4.72"1.250"1.73"2.07"4.72"3.70"2.44"0.39"M16x1









HSK63A-SF1/8-6.3"0.125"0.59"1.06"6.30"5.28"---
HSK63A-SF3/16-6.3"0.187"0.59"1.06"6.30"5.28"---
HSK63A-SF1/4-6.3"0.250"0.83"1.26"6.30"5.28"1.42"0.39"M5
HSK63A-SF5/16-6.3"0.312"0.83"1.26"6.30"5.28"1.42"0.39"M6
HSK63A-SF3/8-6.3"0.375"0.94"1.34"6.30"5.28"1.65"0.39"M8x1
HSK63A-SF1/2-6.3"0.500"1.06"1.65"6.30"5.28"1.85"0.39"M10x1
HSK63A-SF5/8-6.3"0.625"1.06"1.65"6.30"5.28"1.97"0.39"M12x1
HSK63A-SF3/4-6.3"0.750"1.30"2.01"6.30"5.28"2.05"0.39"M16x1
HSK63A-SF1-6.3"1.000"1.73"2.07"6.30"5.28"2.44"0.39"M16x1
HSK63A-SF1-1/4-6.3"1.250"1.73"2.07"6.30"5.28"2.44"0.39"M16x1









HSK80A-SF1/4-3.35"0.250"0.83"1.06"3.35"2.32"1.42"0.39"M5
HSK80A-SF3/8-3.54"0.375"0.94"1.26"3.54"2.52"1.65"0.39"M8x1
HSK80A-SF1/2-3.74"0.500"1.06"1.34"3.74"2.72"1.85"0.39"M10x1
HSK80A-SF5/8-3.94"0.625"1.06"1.34"3.94"2.91"1.97"0.39"M12x1
HSK80A-SF3/4-4.13"0.750"1.30"1.65"4.13"3.11"2.05"0.39"M16x1
HSK80A-SF1-4.53"1.000"1.73"2.09"4.53"3.50"2.44"0.39"M16x1
HSK80A-SF1-1/4-4.72"1.250"1.73"2.09"4.72"3.70"2.44"0.39"M16x1









HSK100A-SF1/4-3.35"0.250"0.83"1.06"3.35"2.20"1.42"0.39"M5
HSK100A-SF3/8-3.54"0.375"0.94"1.26"3.54"2.40"1.65"0.39"M8x1
HSK100A-SF1/2-3.74"0.500"1.06"1.34"3.74"2.60"1.85"0.39"M10x1
HSK100A-SF5/8-3.94"0.625"1.06"1.34"3.94"2.80"1.97"0.39"M12x1
HSK100A-SF3/4-4.13"0.750"1.30"1.65"4.13"2.99"2.05"0.39"M16x1
HSK100A-SF1-4.53"1.000"1.73"2.09"4.53"3.39"2.44"0.39"M16x1









HSK100A-SF1/4-4.72"0.250"0.83"1.06"4.72"3.58"1.42"0.39"M5
HSK100A-SF3/8-4.72"0.375"0.94"1.26"4.72"3.58"1.65"0.39"M8x1
HSK100A-SF1/2-4.72"0.500"1.06"1.34"4.72"3.58"1.85"0.39"M10x1
HSK100A-SF5/8-4.72"0.625"1.06"1.34"4.72"3.58"1.97"0.39"M12x1
HSK100A-SF3/4-4.72"0.750"1.30"1.65"4.72"3.58"2.05"0.39"M16x1
HSK100A-SF1-4.72"1.000"1.73"2.09"4.72"3.58"2.44"0.39"M16x1
HSK100A-SF1-1/4-4.72"1.250"1.73"2.09"4.72"3.58"2.44"0.39"M16x1









HSK100A-SF1/4-6.30"0.250"0.83"1.26"6.30"5.16"1.42"0.39"M5
HSK100A-SF3/8-6.30"0.375"0.94"1.34"6.30"5.16"1.65"0.39"M8x1
HSK100A-SF1/2-6.30"0.500"1.06"1.65"6.30"5.16"1.85"0.39"M10x1
HSK100A-SF5/8-6.30"0.625"1.06"1.65"6.30"5.16"1.97"0.39"M12x1
HSK100A-SF3/4-6.30"0.750"1.30"2.01"6.30"5.16"2.05"0.39"M16x1
HSK100A-SF1-6.30"1.000"1.73"2.36"6.30"5.16"2.44"0.39"M16x1
HSK100A-SF1-1/4-6.30"1.250"1.73"2.36"6.30"5.16"2.44"0.39"M16x1
