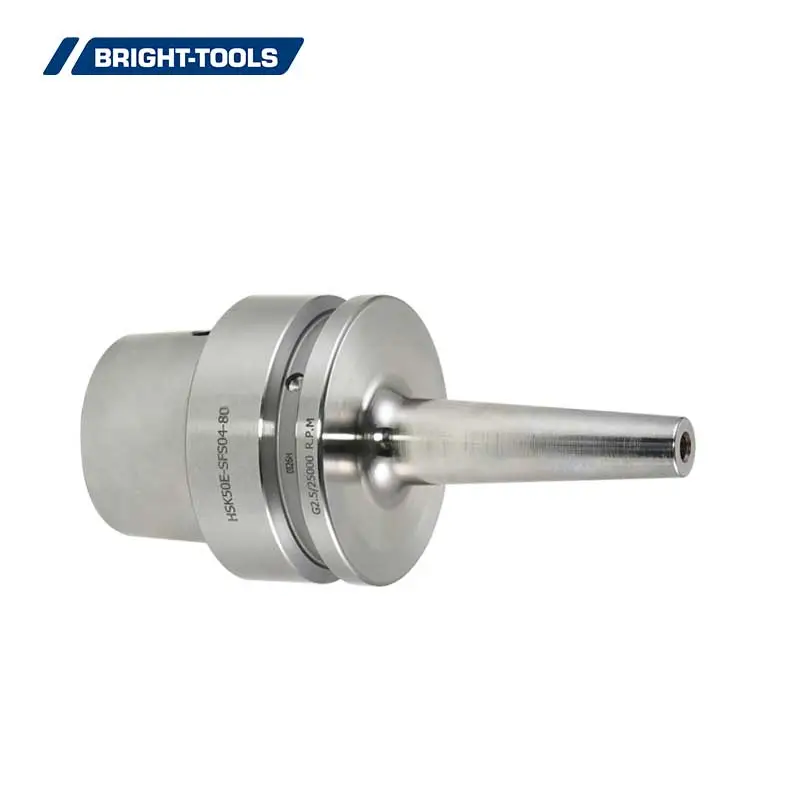

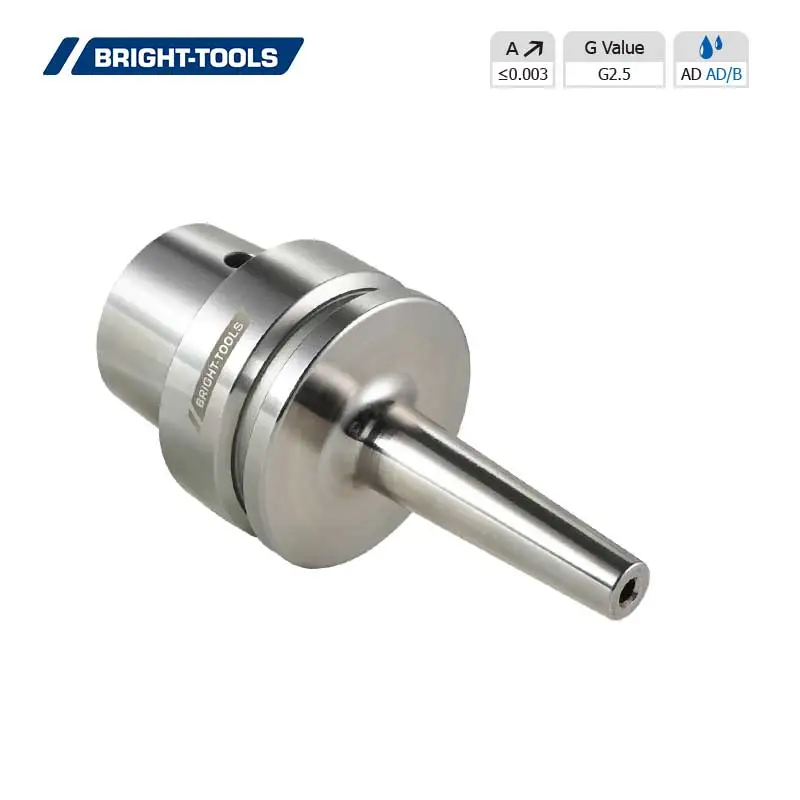

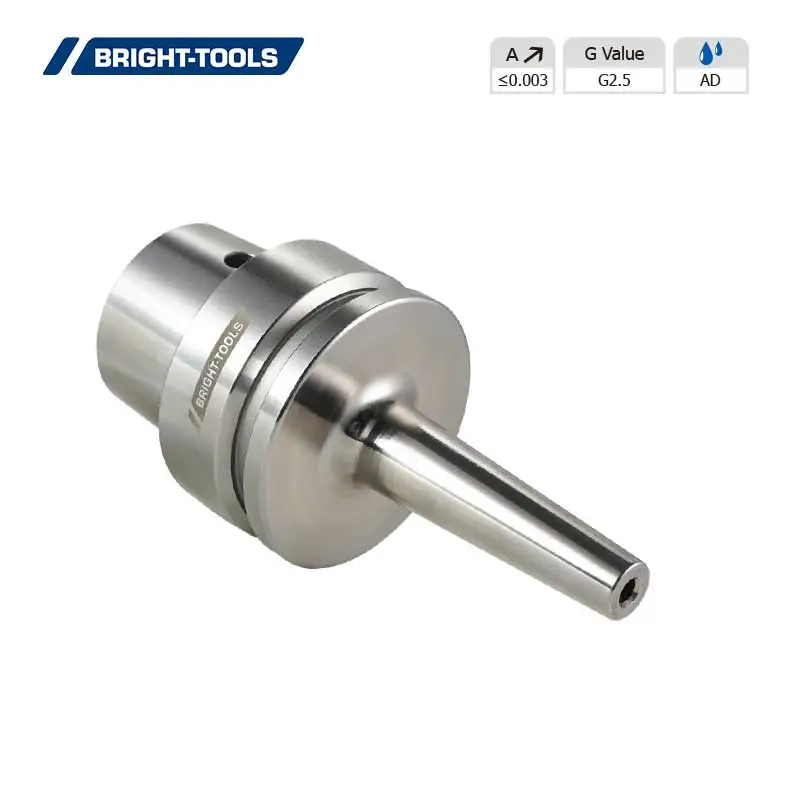

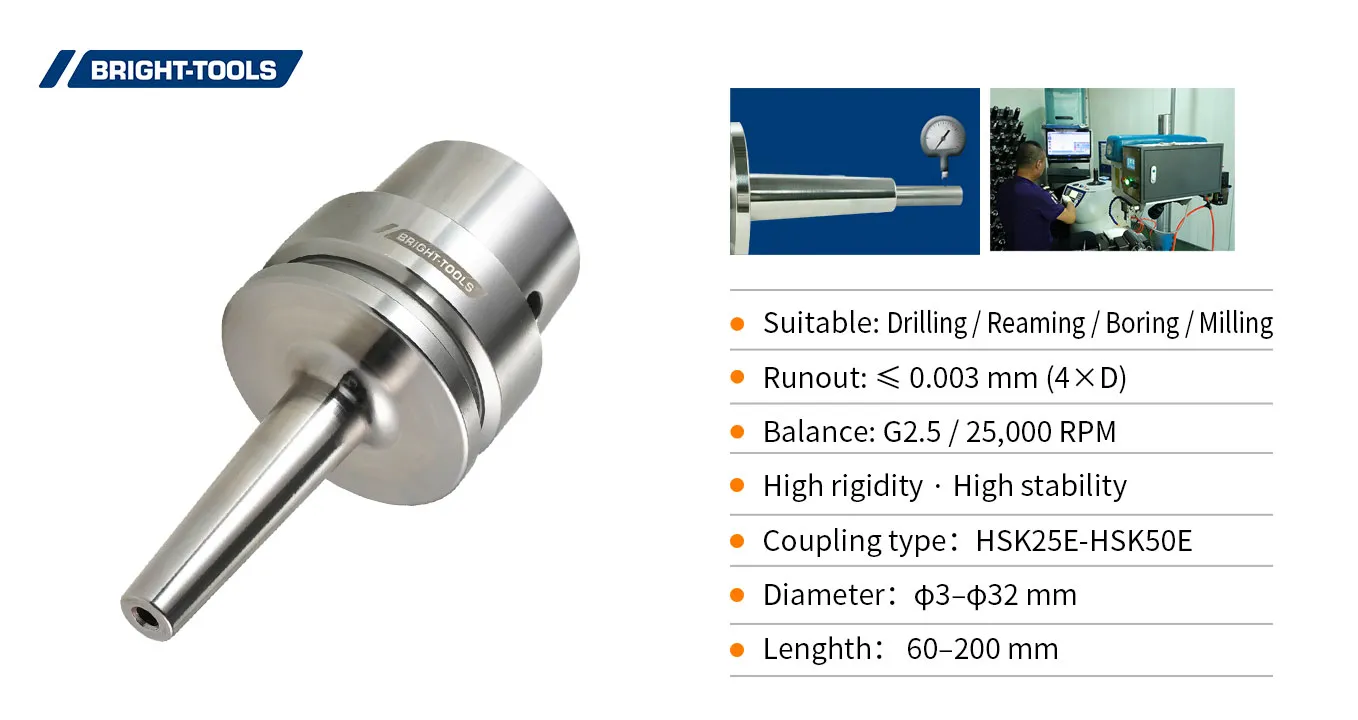

The HSK-E Shrink Fit Chuck 3°, Slim is a specialized chuck designed for the HSK-E spindle interface. It securely holds cutting tools such as drills, end mills, or reamers during high-speed machining. The slim design is advantageous in situations with limited space, while the 3° angle ensures stability and precision for precise machining operations.

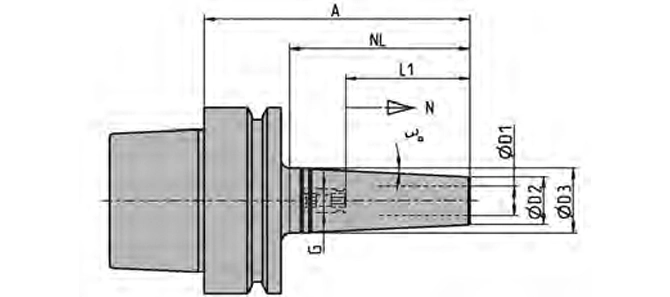

| Size | d | D | L | L2 | L1 | N | G |
| HSK25E-SFS03-50 | 3 | 9 | 50 | 33 | 23 | 8 | M6 |
| HSK25E-SFS04-50 | 4 | 10 | 50 | 33 | 20 | 4 | M6 |
| HSK25E-SFS05-50 | 5 | 11 | 50 | 33 | 20 | 3 | M6 |
| HSK25E-SFS06-50 | 6 | 12 | 50 | 33 | 36 | – | – |
| HSK25E-SFS08-50 | 8 | 14 | 50 | 38 | 36 | – | – |
| HSK25E-SFS10-50 | 10 | 16 | 50 | 40 | 42 | – | – |
| HSK32E-SFS03-60 | 3 | 9 | 60 | 44 | 20 | 5 | M6 |
| HSK32E-SFS04-60 | 4 | 10 | 60 | 44 | 20 | 5 | M6 |
| HSK32E-SFS06-70 | 6 | 12 | 70 | 54 | 36 | 5 | M5 |
| HSK32E-SFS08-70 | 8 | 14 | 70 | 54 | 36 | 5 | M6 |
| HSK32E-SFS10-80 | 10 | 16 | 80 | 64 | 42 | 5 | M8x1 |
| HSK40E-SFS03-50 | 3 | 9 | 50 | 30 | 20 | – | – |
| HSK40E-SFS04-50 | 4 | 10 | 50 | 30 | 20 | – | – |
| HSK40E-SFS06-60 | 6 | 12 | 60 | 40 | 36 | 10 | M5 |
| HSK40E-SFS08-60 | 8 | 14 | 60 | 40 | 36 | 10 | – |
| HSK40E-SFS10-60 | 10 | 16 | 60 | 40 | 42 | 10 | – |
| HSK40E-SFS12-60 | 12 | 18 | 60 | 40 | 42 | 10 | – |
| HSK40E-SFS16-70 | 16 | 22 | 70 | 50 | 50 | 10 | – |
| HSK50E-SFS03-60 | 3 | 9 | 60 | 34 | – | – | – |
| HSK50E-SFS04-80 | 4 | 10 | 80 | 54 | – | – | – |
| HSK50E-SFS06-80 | 6 | 12 | 80 | 54 | 36 | 10 | M5 |
| HSK50E-SFS08-80 | 8 | 14 | 80 | 54 | 36 | 10 | M6 |
| HSK50E-SFS10-90 | 10 | 16 | 90 | 64 | 42 | 10 | M8x1 |
| HSK50E-SFS12-90 | 12 | 18 | 90 | 64 | 47 | 10 | M10x1 |
| HSK50E-SFS16-90 | 16 | 22 | 90 | 64 | 50 | 10 | M16x1 |
| Size | d | D | L | L2 | L1 | N | G |
| HSK40E-SFS1/8-2.36" | 1/8" | 0.36" | 2.36" | 1.57" | 0.78" | – | M6 x 1.0 |
| HSK40E-SFS3/16-2.36" | 3/16" | 0.43" | 2.36" | 1.57" | 0.78" | – | M6 x 1.0 |
| HSK40E-SFS1/4-2.36" | 1/4" | 0.47" | 2.36" | 1.57" | 1.42" | 0.39" | M5 x 0.8 |
| HSK40E-SFS3/8-2.36" | 3/8" | 0.63" | 2.36" | 1.57" | 1.65" | 0.39" | M8 x 1.25 |
| HSK40E-SFS1/2-2.36" | 1/2" | 0.71" | 2.36" | 1.57" | 1.85" | 0.39" | M10 x 1.5 |
| HSK50E-SFS1/8-2.76 | 0.125 | 0.39 | 2.76 | 1.65 | 0.79 | – | M6 |
| HSK50E-SFS3/16-2.76 | 0.187 | 0.39 | 2.76 | 1.65 | 0.98 | – | M6 |
| HSK50E-SFS1/4-2.76 | 0.25 | 0.47 | 2.76 | 1.65 | 1.42 | 0.39" | M5 |
| HSK50E-SFS3/8-2.76 | 0.375 | 0.63 | 2.76 | 1.65 | 1.65 | 0.39" | |
| HSK50E-SFS1/2-2.76 | 0.5 | 0.71 | 2.76 | 1.65 | 1.85 | 0.39" | – |
| HSK50E-SFS5/8-2.76 | 0.625 | 0.87 | 2.76 | 1.65 | 1.85 | 0.39" | – |
| HSK50E-SFS1/4-3.54 | 0.25 | 0.47 | 3.54 | 2.36 | 1.42 | 0.39" | M5 |
| HSK50E-SFS3/8-3.54 | 0.375 | 0.63 | 3.54 | 2.36 | 1.65 | 0.39" | M8x1 |
| HSK50E-SFS1/2-3.54 | 0.5 | 0.79 | 3.54 | 2.36 | 1.85 | 0.39" | M10x1 |
| HSK50E-SFS5/8-3.54 | 0.625 | 0.87 | 3.54 | 2.36 | 1.97 | 0.39" | M10x1 |
| HSK50E-SFS1/8-3.94 | 0.125 | 0.39 | 3.94 | 2.76 | 0.79 | – | M6 |
| HSK50E-SFS3/16-3.94 | 0.187 | 0.43 | 3.94 | 2.76 | 0.98 | – | M6 |
| HSK50E-SFS1/4-4.72 | 0.25 | 0.47 | 4.72 | 3.54 | 1.42 | 0.39" | M5 |
| HSK50E-SFS3/8-4.72 | 0.375 | 0.63 | 4.72 | 3.54 | 1.65 | 0.39" | M8x1 |
| HSK50E-SFS1/2-4.72 | 0.5 | 0.79 | 4.72 | 3.54 | 1.85 | 0.39" | M10x1 |
| HSK50E-SFS5/8-4.72 | 0.625 | 0.87 | 4.72 | 3.54 | 1.97 | 0.39" | M10x1 |
