Name: Rectangular Holder with Multiple Seats Form D2 Inverted
Brand: Shandong Jinjie Machinery Co., Ltd.
Availability: InStock

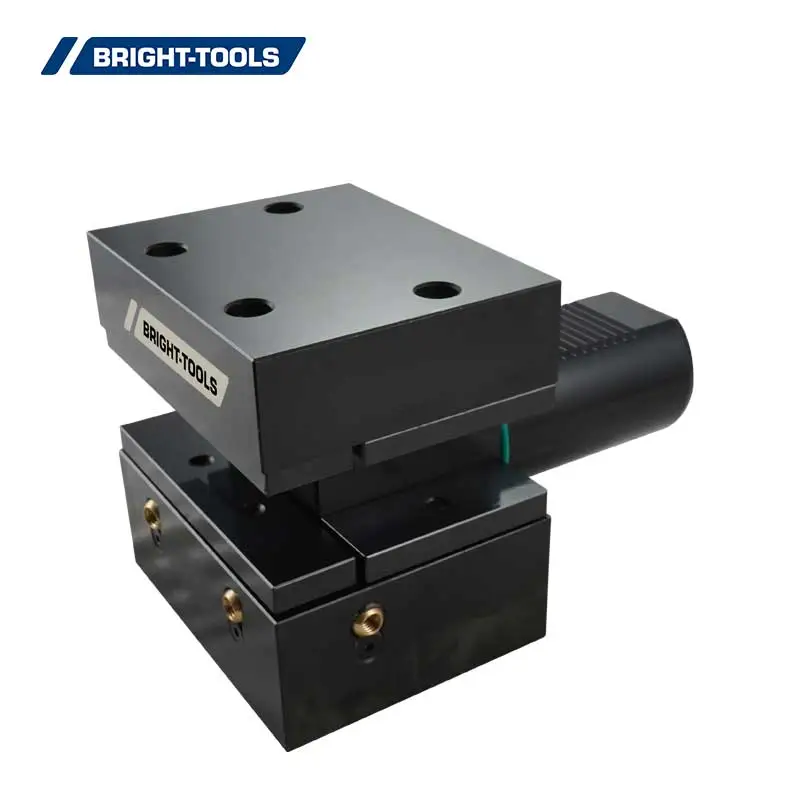

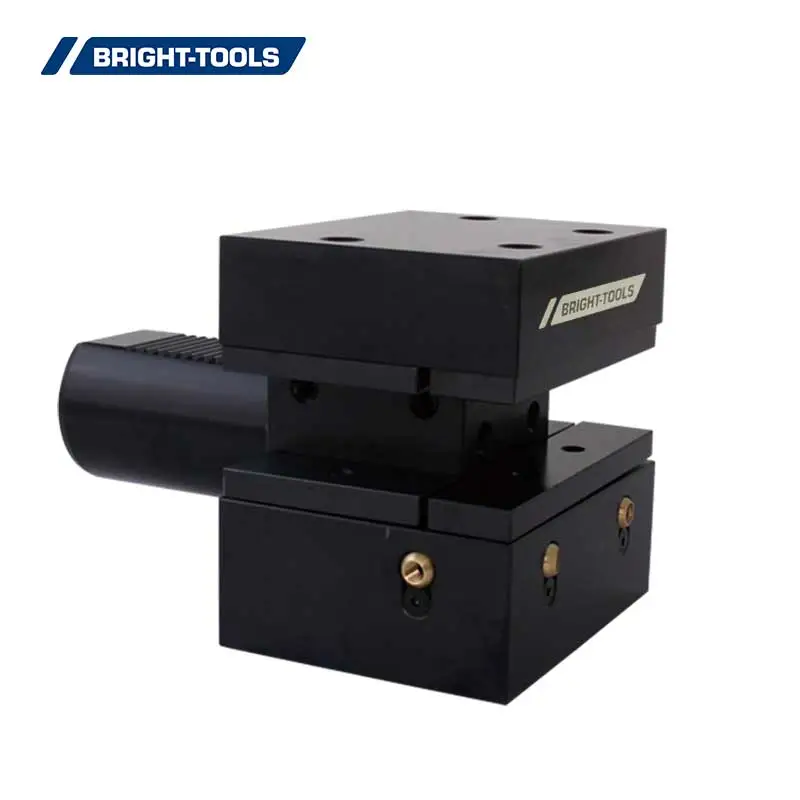

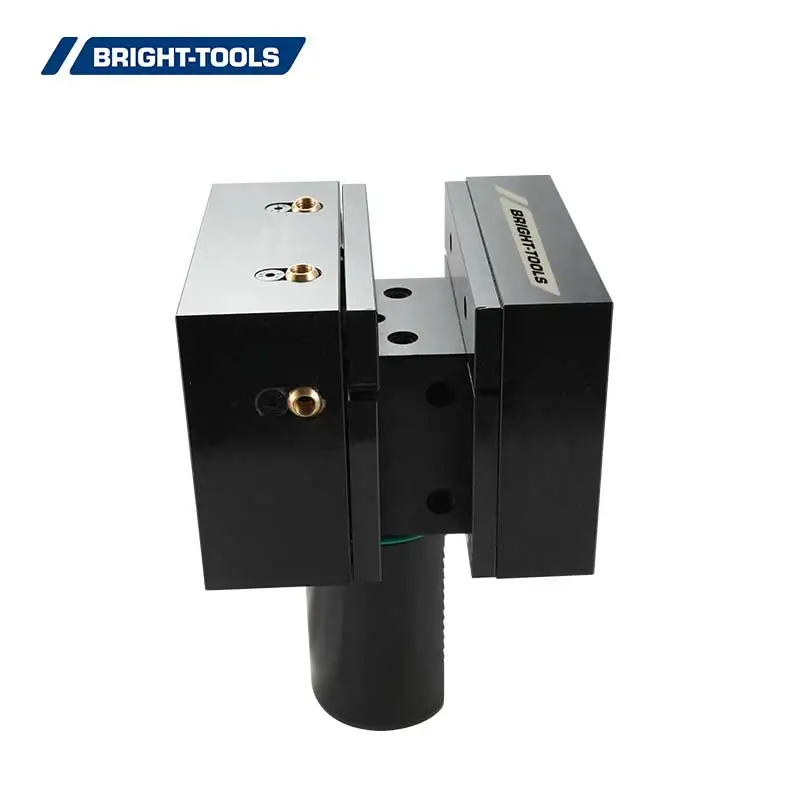

Rectangular Holder with Multiple Seats Form D2 Inverted

Rectangular Holder with Multiple Seats Form D2 Inverted is a stylish and unique seating option that stands out in any space. The inverted design creates a striking visual that is both modern and elegant. The rectangular base provides a stable support for multiple seats, making it ideal for busy public spaces or events. The sleek design and durable construction make this seating solution both functional and visually appealing, making it a great choice for any location.

Buy Rectangular Holder with Multiple Seats Form D2 Inverted 

TECHNICAL DRAWING OF RECTANGULAR HOLDER WITH MULTIPLE SEATS FORM D2 INVERTED

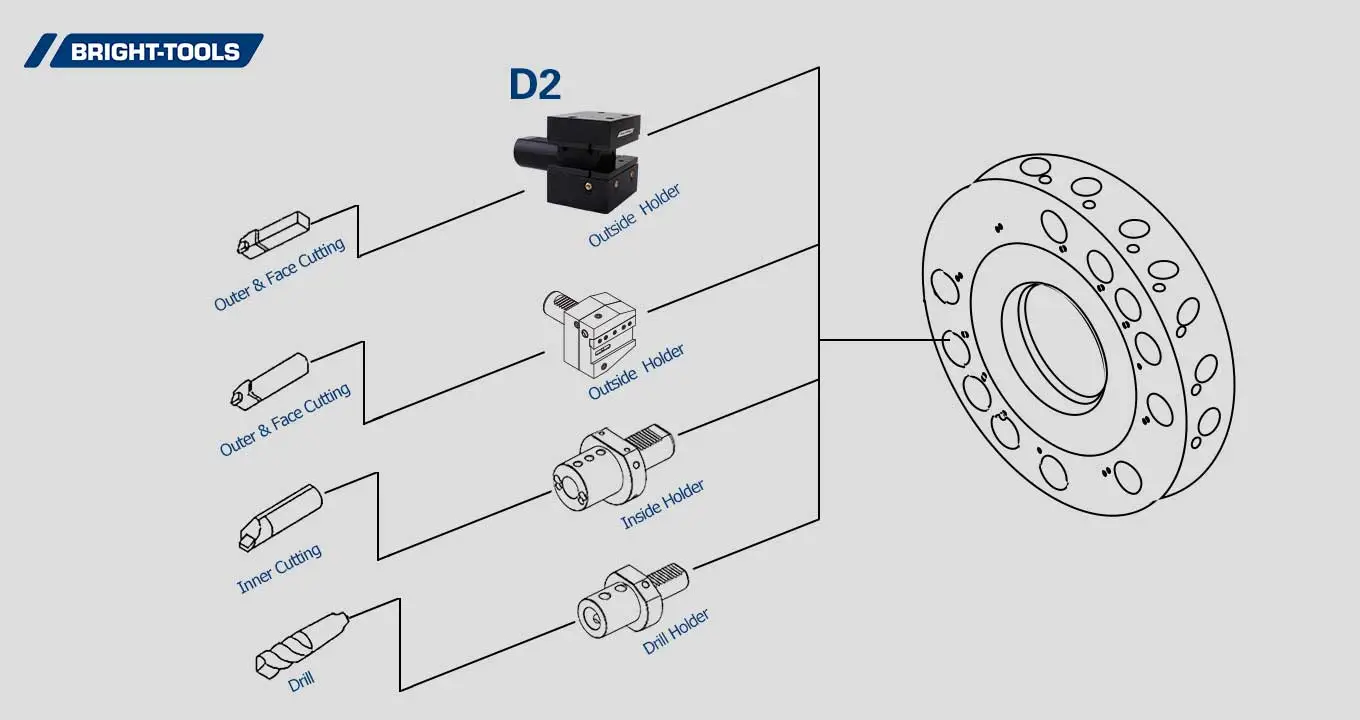

High Concentricity

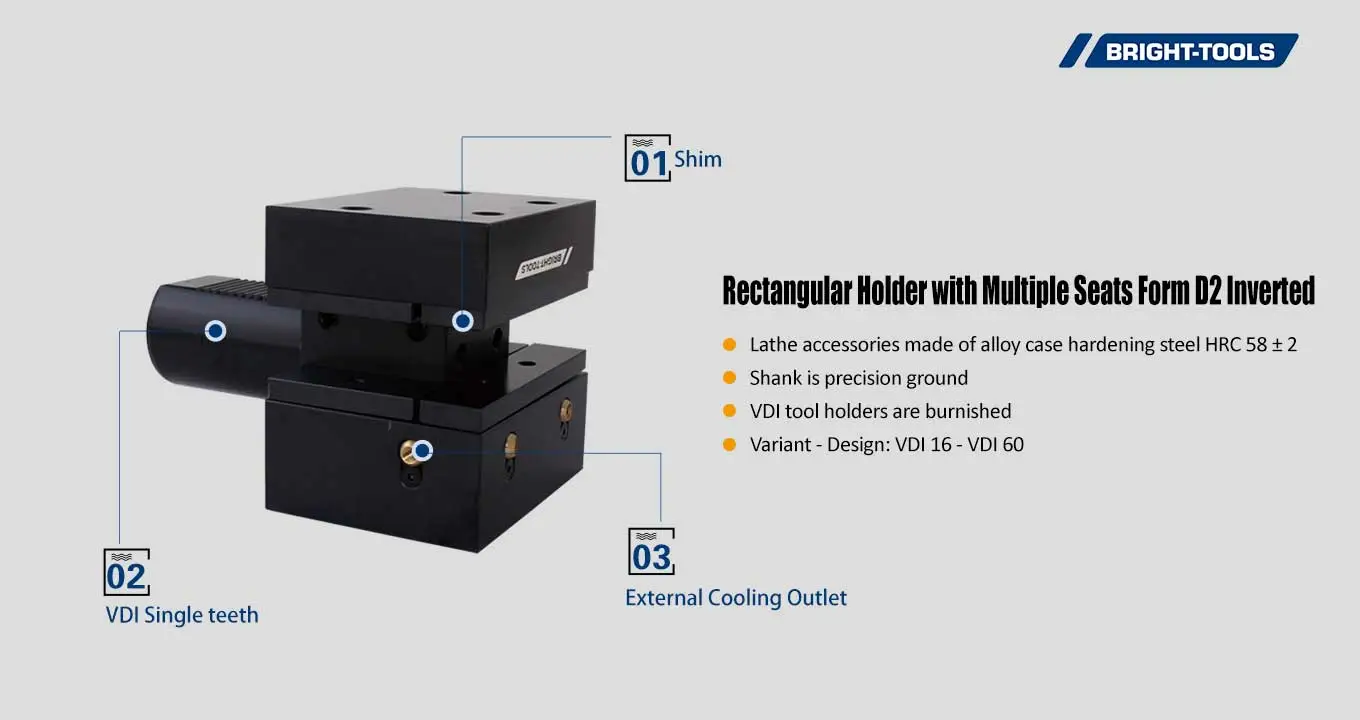

Product Structure

Rectangular Holder with Multiple Seats Form D2 Inverted

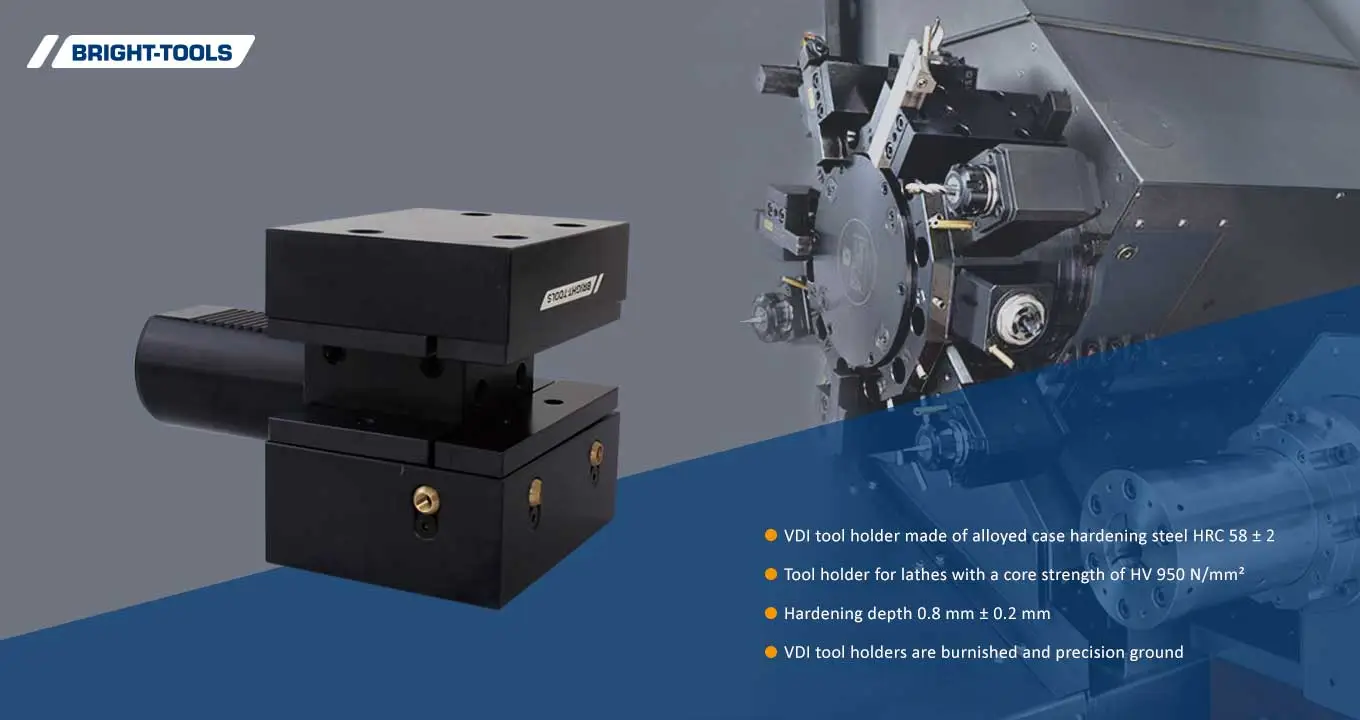

High Concentricity Of Cnc Live Tooling

Product Structure Of Mt Live Tooling

Rectangular Holder with Multiple Seats Form D2 Inverted Of Coolant Driven Live Tooling

SPECIFICATION OF RECTANGULAR HOLDER WITH MULTIPLE SEATS FORM D2 INVERTED

Size	d1	b1	b2	b3	h1	h5	h6	l1	l2	l3
D2-25x16x48	25	33	19	19	16/12	25	30	34	48	66
D2-30x20x60	30	35	17	23	20/16	35	38	42	60	76
D2-40x25x72	40	42.5	21	25.5	25/20	42.5	48	50	72	90
D2-50x32x85	50	50	26	30.5	32/25	50	60	60	85	105
D2-60x32x110	60	57.5	33	33	32/25	62.5	62.5	85	110	115
D2-80x40x140	80	76	42	42	40/32	80	80	105	140	152

Size	d1	b1	b2	b3	h1	h5	h6	l1	l2	l3
D2-30x3/4"x60	30	35	17	23	3/4"	35	38	42	60	76
D2-40x1"x72	40	42.5	21	25.5	1"	42.5	48	50	72	90
D2-50x1-1/4" x85	50	50	26	30.5	1-1/4"	50	60	60	85	105
D2-60x1-1/4" x110	60	57.5	33	33	1-1/4"	62.5	62.5	85	110	115
