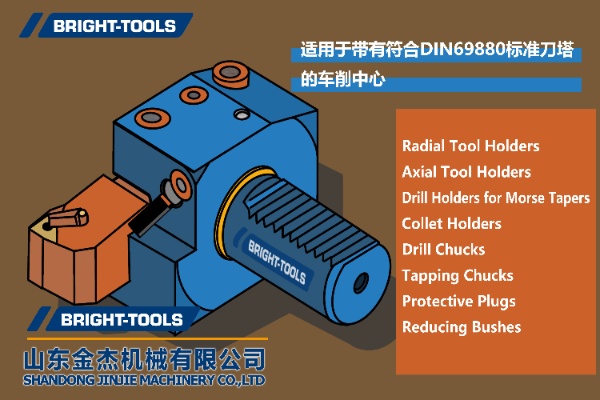

Bright-Tools' DIN 69880 VDI tool holder is an innovative tool clamping system designed for high-precision machining, especially suited for high-end CNC machine applications. Unlike common tool holder products on the market, Bright-Tools' tool holder not only complies with the DIN 69880 standard but also incorporates its unique design advantages to ensure that the tool maintains extremely high stability and accuracy during high-speed cutting.
Bright-Tools' DIN 69880 VDI tool holder adopts advanced clamping technology and optimized geometry design, making the tool clamping more tight and stable. The clamping force of the tool holder can remain consistent under high loads and high speeds, greatly reducing the risk of tool loosening or vibration, and providing more precise machining results. For some high-precision, high-speed machining tasks, this stability is unparalleled by other tool holders.
The design precision of Bright-Tools' DIN 69880 VDI tool holder reaches industry-leading levels. The fit between the holder and the tool is very precise, effectively preventing errors caused by small deviations during machining. Moreover, it uses high-strength materials and advanced manufacturing processes, maintaining good durability even under long-term, high-load usage, and extending the service life of the tool and tool holder.
Thanks to its flexible design, Bright-Tools' DIN 69880 VDI tool holder can be widely used in various CNC machines and milling-turning composite machining equipment. Whether it's precision mold processing, aerospace component manufacturing, or precision automotive parts manufacturing, Bright-Tools' tool holder can provide stable support, ensuring processing quality is not affected by any fluctuations.
A notable highlight of Bright-Tools' DIN 69880 VDI tool holder design is its efficient tool change system. Through a precise docking system, users can quickly complete tool fixing and disassembly when changing tools, reducing downtime during production and significantly improving machining efficiency.
Bright-Tools, as one of the professional VDI tool holder manufacturers, pays special attention to enhancing vibration resistance. The holder is designed with damping characteristics in mind, ensuring that even under high-speed cutting or high-load machining, the impact of vibration is effectively reduced, improving the surface quality and precision of workpieces.
With its unique high performance, precise design, and durability, Bright-Tools' DIN 69880 VDI tool holder stands out in the industry, becoming an indispensable core component in many high-end manufacturing and precision machining fields. Whether in complex high-precision machining tasks or in long-term, high-load application scenarios, Bright-Tools' tool holders provide reliable support, helping users achieve more efficient and precise machining goals.
What is the DIN 69880 standard used for?
The DIN 69880 standard defines the interface dimensions and technical requirements for VDI tool holders used in driven tool systems on CNC lathes. It ensures compatibility between tool holders and machine turrets, especially in automated turning operations. This standard is widely used in modular tooling systems to improve precision, repeatability, and tool change efficiency in modern CNC machining environments.
What is a DIN 69880 VDI tool holder?
A DIN 69880 VDI tool holder is a standardized tool clamping interface designed for CNC lathes with VDI (Verein Deutscher Ingenieure) turret systems. It allows fast and repeatable tool changes while maintaining high rigidity. These tool holders are commonly used in turning centers for live tooling applications, helping improve machining efficiency, reduce downtime, and ensure consistent positioning accuracy.
What are the key benefits of DIN 69880 VDI tool holder systems?
The main advantages of DIN 69880 VDI tool holder systems include quick-change capability, high positioning accuracy, and strong repeatability. They also support modular tooling setups, which reduces machine setup time and increases production flexibility. In high-volume CNC machining, this standard helps manufacturers achieve better productivity and reduced tooling costs.
What is the difference between DIN 69880 and DIN 69893?
The main difference is their application and interface design. DIN 69880 is primarily used for VDI tool holders in CNC lathe turret systems, focusing on turning operations. In contrast, DIN 69893 standards (HSK) are used in high-speed milling and machining centers, offering higher precision and stability at elevated spindle speeds. Both standards serve different machining environments but ensure standardized tool compatibility.
What is the DIN 69893 standard in machining?
The DIN 69893 standard defines the HSK (Hohl-Schaft-Kegel / hollow shank taper) tool interface used in high-speed machining applications. Unlike traditional taper systems, DIN 69893 provides dual contact between the spindle and tool holder, ensuring superior rigidity and accuracy at high spindle speeds. It is widely used in milling, drilling, and precision machining centers.
