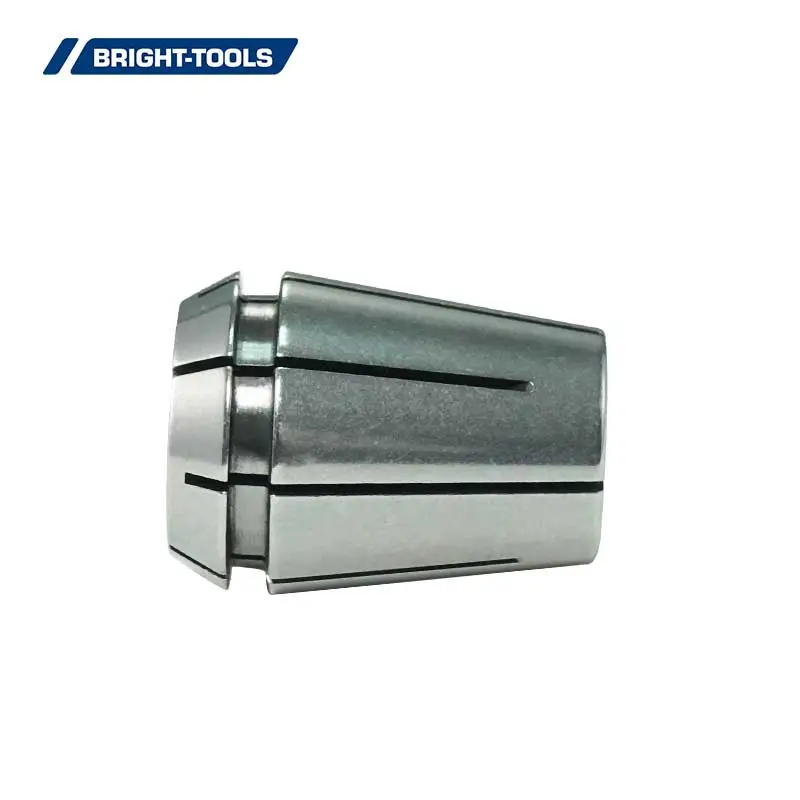

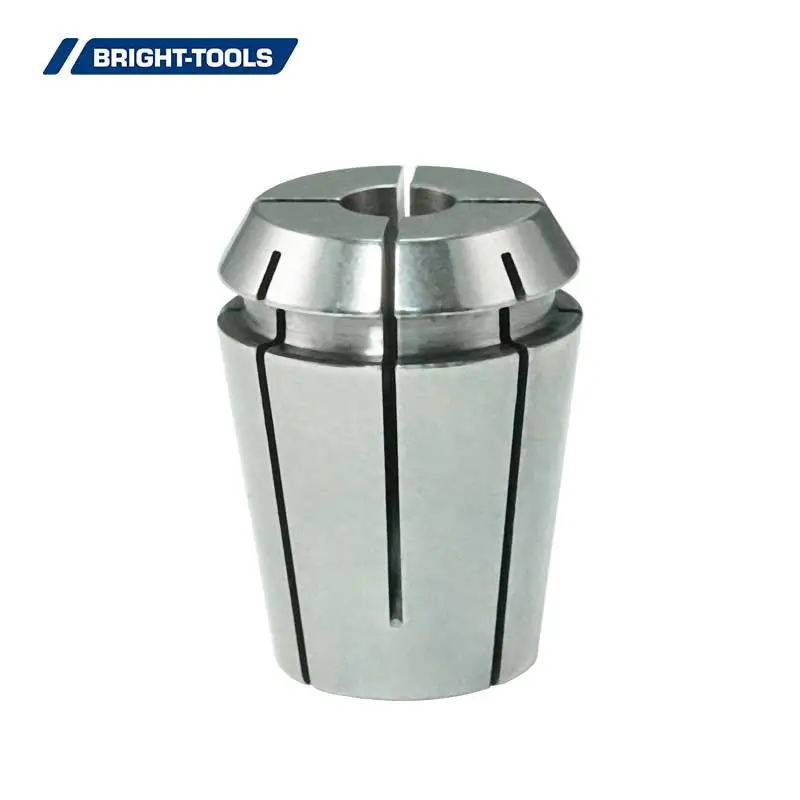

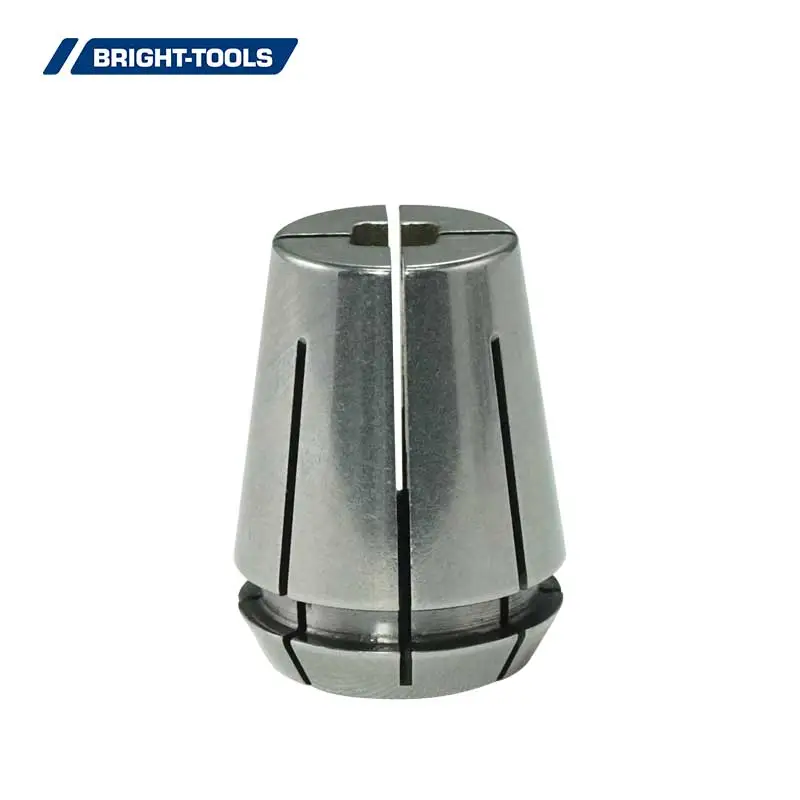

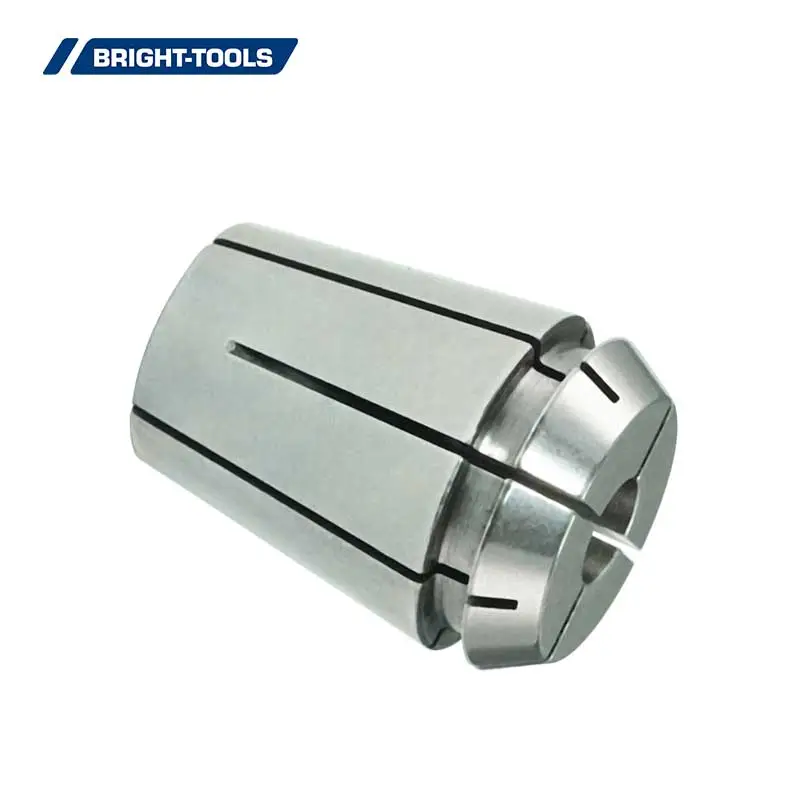

Features
Take use of the difference of flute and the use of sealed ring to attain surrounding coolant and provide center as water outlet
Useful to chuck cutting tools with water outlet
Can bear the water pressure up to 21 kgf/cm2
No flexibility(No flexibility chucking range. It depends on the biggest chucking range)
The ER part of the product is according to DIN6499, It can be used with suitable tool holders

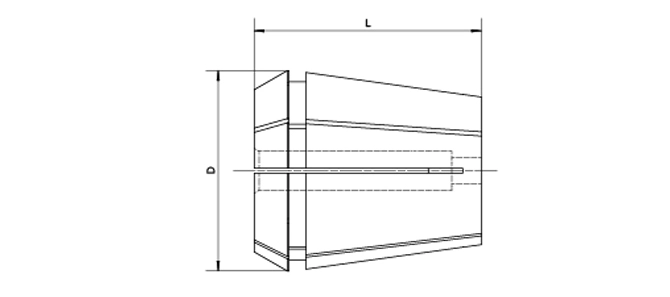

| Size | D | L | Diameter |
| ER16G (3.5*2.7) | 16.74 | 27.5 | 3.5*2.7 |
| ER16G (4.0*3.0) | 16.74 | 27.5 | 4.0*3.0 |
| ER16G (4.5*3.4) | 16.74 | 27.5 | 4.5*3.4 |
| ER16G (5.5*4.3) | 16.74 | 27.5 | 5.5*4.3 |
| ER16G (6*4.9) | 16.74 | 27.5 | 6*4.9 |
| ER16G (7*5.5) | 16.74 | 27.5 | 7*5.5 |
| ER16G (8*6.2) | 16.74 | 27.5 | 8*6.2 |
| ER20G (3.5*2.7) | 20.74 | 31.5 | 3.5*2.7 |
| ER20G (4.0*3.0) | 20.74 | 31.5 | 4.0*3.0 |
| ER20G (4.5*3.4) | 20.74 | 31.5 | 4.5*3.4 |
| ER20G (5.5*4.3) | 20.74 | 31.5 | 5.5*4.3 |
| ER20G (6.0*4.9) | 20.74 | 31.5 | 6.0*4.9 |
| ER20G (7*5.5) | 20.74 | 31.5 | 7*5.5 |
| ER20G (8*6.2) | 20.74 | 31.5 | 8*6.2 |
| ER20G (9*7.0) | 20.74 | 31.5 | 9*7.0 |
| ER20G (10*8.0) | 20.74 | 31.5 | 10*8.0 |
| ER25G (3.5*2.7) | 25.74 | 34 | 3.5*2.7 |
| ER25G (4.0*3.0) | 25.74 | 34 | 4.0*3.0 |
| ER25G (4.5*3.4) | 25.74 | 34 | 4.5*3.4 |
| ER25G (5.5*4.3) | 25.74 | 34 | 5.5*4.3 |
| ER25G (6.0*4.9) | 25.74 | 34 | 6.0*4.9 |
| ER25G (7.0*5.5) | 25.74 | 34 | 7.0*5.5 |
| ER25G (8.0*6.2) | 25.74 | 34 | 8.0*6.2 |
| ER25G (9*7.0) | 25.74 | 34 | 9*7.0 |
| ER25G (10*8.0) | 25.74 | 34 | 10*8.0 |
| ER25G (11*9.0) | 25.74 | 34 | 11*9.0 |
| ER25G (12*9.0) | 25.74 | 34 | 12*9.0 |
| ER25G (14*11.0) | 25.74 | 34 | 14*11.0 |
| ER25G (16*12.0) | 25.74 | 34 | 16*12.0 |
| ER32G (3.5*2.7) | 32.74 | 40 | 3.5*2.7 |
| ER32G (4.0*3.0) | 32.74 | 40 | 4.0*3.0 |
| ER32G (4.5*3.4) | 32.74 | 40 | 4.5*3.4 |
| ER32G (5.5*4.3) | 32.74 | 40 | 5.5*4.3 |
| ER32G (6.0*4.9) | 32.74 | 40 | 6.0*4.9 |
| ER32G (7.0*5.5) | 32.74 | 40 | 7.0*5.5 |
| ER32G (8.0*6.2) | 32.74 | 40 | 8.0*6.2 |
| ER32G (9.0*7.0) | 32.74 | 40 | 9.0*7.0 |
| ER32G (10*8.0) | 32.74 | 40 | 10*8.0 |
| ER32G (11*9.0) | 32.74 | 40 | 11*9.0 |
| ER32G (12*9.0) | 32.74 | 40 | 12*9.0 |
| ER32G (14*11.0) | 32.74 | 40 | 14*11.0 |
| ER32G (16*12.0) | 32.74 | 40 | 16*12.0 |
| ER32G (18*14.5) | 32.74 | 40 | 18*14.5 |
| ER32G (20*16.0) | 32.74 | 40 | 20*16.0 |
| ER40G (3.5*2.7) | 40.74 | 46 | 3.5*2.7 |
| ER40G (4.0*3.0) | 40.74 | 46 | 4.0*3.0 |
| ER40G (4.5*3.4) | 40.74 | 46 | 4.5*3.4 |
| ER40G (5.5*4.3) | 40.74 | 46 | 5.5*4.3 |
| ER40G (6.0*4.9) | 40.74 | 46 | 6.0*4.9 |
| ER40G (7.0*5.5) | 40.74 | 46 | 7.0*5.5 |
| ER40G (8.0*6.2) | 40.74 | 46 | 8.0*6.2 |
| ER40G (9.0*7.0) | 40.74 | 46 | 9.0*7.0 |
| ER40G (10.0*8.0) | 40.74 | 46 | 10.0*8.0 |
| ER40G (11*9.0) | 40.74 | 46 | 11*9.0 |
| ER40G (12*9.0) | 40.74 | 46 | 12*9.0 |
| ER40G (14*11.0) | 40.74 | 46 | 14*11.0 |
| ER40G (16*12.0) | 40.74 | 46 | 16*12.0 |
| ER40G (18*14.5) | 40.74 | 46 | 18*14.5 |
| ER40G (20*16.0) | 40.74 | 46 | 20*16.0 |
| ER40G (22*18.0) | 40.74 | 46 | 22*18.0 |
| ER40G (25*20.0) | 40.74 | 46 | 25*20.0 |
