Tool holders play a vital role in CNC machining, affecting precision, stability, and efficiency. Among the most widely used systems are HSK tool holders and DIN 69871 tool holders. Both have established their place in modern machining, but each is engineered for different performance demands.
So, what exactly differentiates an HSK tool holder from a DIN 69871? This article explores the technical design, functional benefits, and applications of both, helping you determine which suits your machining needs best.
HSK (Hollow Shank Taper) tool holders are high-speed, high-precision holders developed in Germany to meet the increasing demand for better balance and clamping force at high RPMs. Bright-tools offers a wide range of HSK tool holders, including HSK A63, A100, and HSK E series, designed specifically for precision machining.
Shorter taper length: Ensures better balance at high speeds
Dual contact system: Contacts both the taper and the face of the spindle
Hollow shank: Reduces weight, improving acceleration and deceleration
High clamping force: Enables higher cutting parameters
HSK tool holders are widely used in aerospace, mold-making, and high-speed milling applications, where extreme precision and rigidity are required.

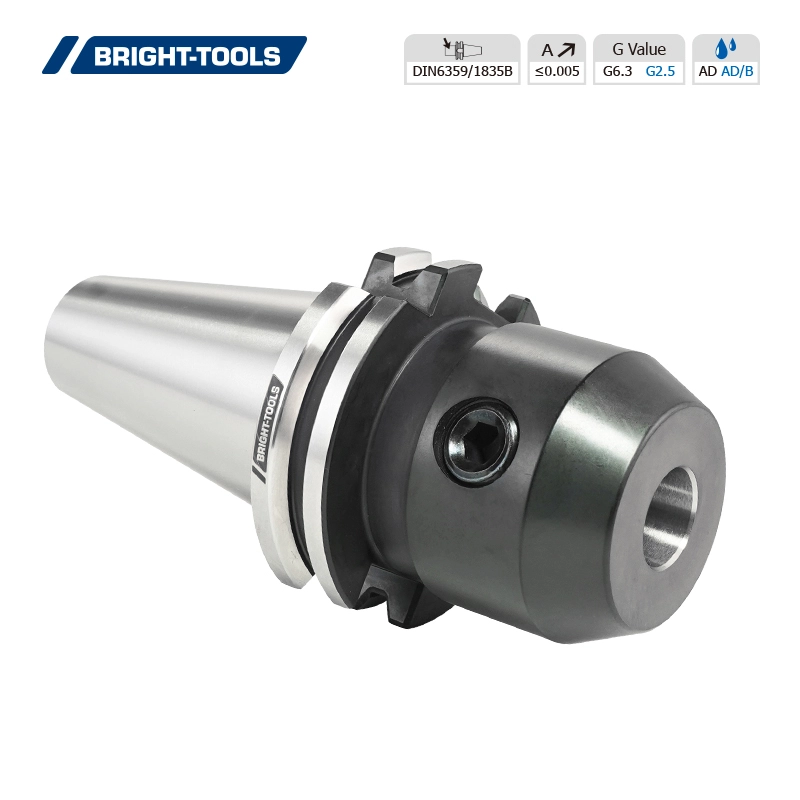

DIN 69871 tool holders (also known as SK or BT holders in some regions) are based on a standardized taper design. Bright-tools manufactures DIN 69871 holders with excellent surface treatment and high concentricity, ensuring performance consistency across industrial applications.
Standard 7:24 taper angle
Pull stud clamping mechanism
Available in various forms (A, AD, B)
Cost-effective and widely compatible
DIN 69871 holders are common in general CNC machining, automotive, and heavy-duty milling, offering a reliable and durable solution.
| Feature | HSK Tool Holder | DIN 69871 Tool Holder |
|---|---|---|
| Taper Angle | Short taper + face contact | 7:24 taper only |
| Clamping | Dual contact (taper + flange) | Pull stud (taper only) |
| Speed Suitability | Up to 40,000 RPM | Generally below 15,000 RPM |
| Balance & Vibration | Excellent balance at high RPM | Less suitable for high-speed work |
| Rigidity | High (face contact adds support) | Moderate |
| Application | Precision, high-speed machining | General-purpose machining |
| Tool Change Time | Faster (shorter taper) | Slightly slower |
| Compatibility | Specific to HSK spindles | Compatible with many machines |
When it comes to high-speed machining, HSK tool holders clearly outperform DIN 69871 due to their lightweight construction, better balance, and dual-contact clamping. The hollow design of the HSK allows for rapid spindle acceleration and deceleration, reducing machining time and wear on the machine.
Bright-tools provides precision-balanced HSK holders to DIN 69893 standards, ensuring their holders meet the requirements of ultra-high-speed CNC operations.
In terms of holding force and positioning accuracy, HSK holders maintain superior rigidity. The simultaneous taper and face contact reduces axial movement and prevents vibration during heavy cutting.
DIN 69871 holders, while robust, only contact the spindle taper, making them more susceptible to minute misalignments, especially under lateral loads.
Bright-tools ensures all DIN 69871 holders are tested for concentricity within ≤0.003mm, which is ideal for most industrial applications, but may not reach the repeatability levels of HSK holders under dynamic conditions.
A key advantage of DIN 69871 holders is their widespread compatibility with various CNC machines. They’re a plug-and-play solution in many vertical machining centers (VMCs), especially in Europe and Asia.
In contrast, HSK holders require compatible spindles and clamping mechanisms, making them more suitable for specialized high-speed equipment. However, many modern high-precision CNCs are being manufactured with HSK spindles to accommodate these performance advantages.
Choosing between HSK and DIN 69871 depends on your machining goals:
Your operations demand ultra-high precision and speed
You work in aerospace, mold-making, or die-casting industries
You need fast tool changeovers and low runout
You operate CNCs with high-speed spindles
You require a versatile, cost-effective holder for general use
Your machine uses a 7:24 taper spindle
Your RPM requirements are moderate (<15,000)
You value widespread compatibility
Bright-tools, with over 20 years of experience in precision tooling, is a trusted manufacturer of both HSK and DIN 69871 holders. The company operates a fully equipped production facility with advanced inspection capabilities such as ZEISS CMM, dynamic balancing machines, and concentricity measuring instruments.
Their product highlights include:
Strict quality control: Every tool holder is inspected before shipment
Customized solutions: Tailored holders to fit specific machine models or performance needs
Surface hardening treatment: Improves durability and wear resistance
Global partnerships: Serving markets across Europe, North America, and Southeast Asia
Whether you are looking for HSK A63 holders for high-speed precision milling, or DIN 69871 AD/B holders for general CNC applications, Bright-tools offers a full catalog of high-quality solutions.
Both HSK and DIN 69871 tool holder serve crucial roles in CNC machining, each excelling under different conditions. While HSK holders deliver unmatched performance in high-speed and high-precision contexts, DIN 69871 remains a cost-effective and reliable choice for everyday milling.
At Bright-tools, you don’t have to compromise. With their expertise and broad product offering, you can find the right tool holder to elevate your machining accuracy, efficiency, and consistency.
