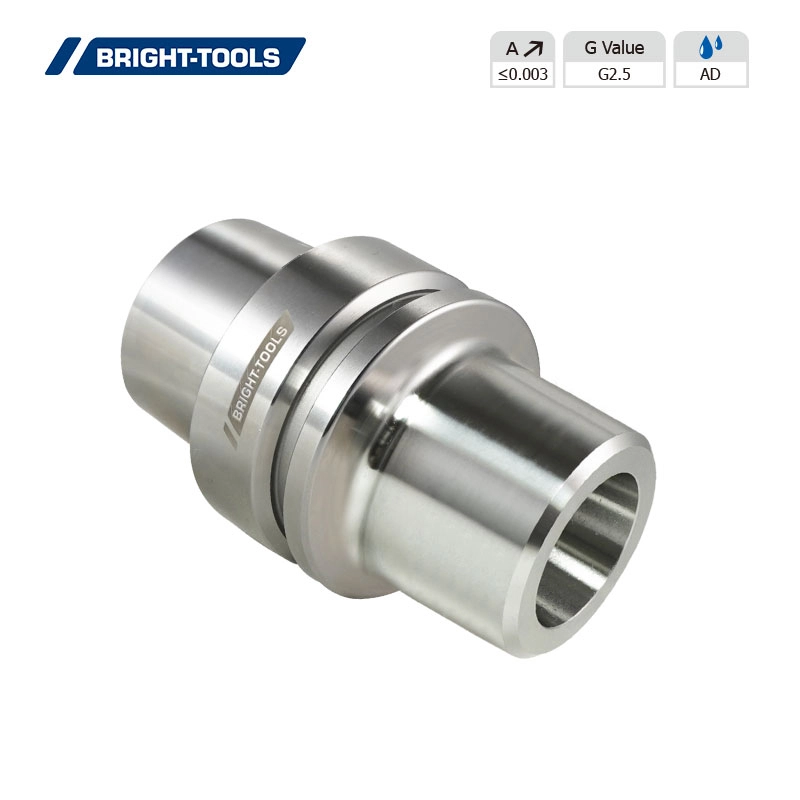

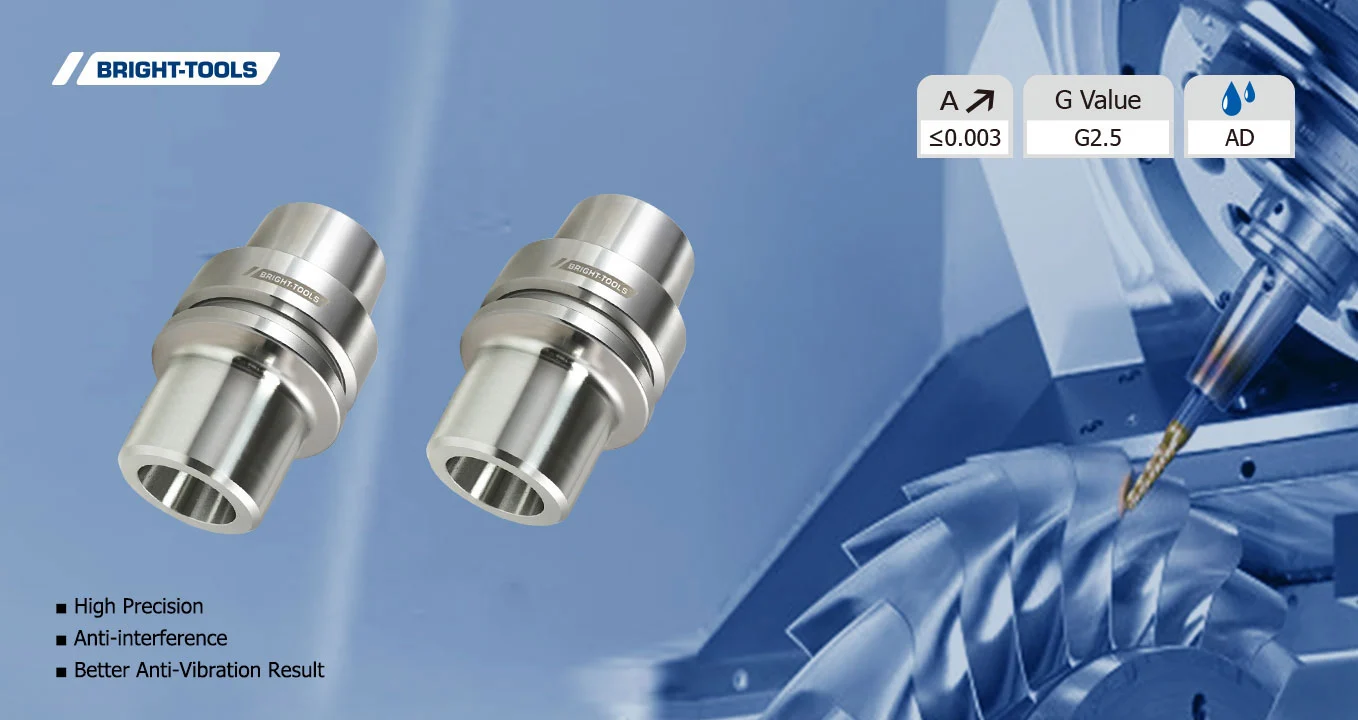

HSK-F Shrink Chuck Taper
Tow piece type shrink fit tool holder, Versatile and economical and high runout accuracy. Compact with easy-shrink fitting. kinds of combination space and money saving

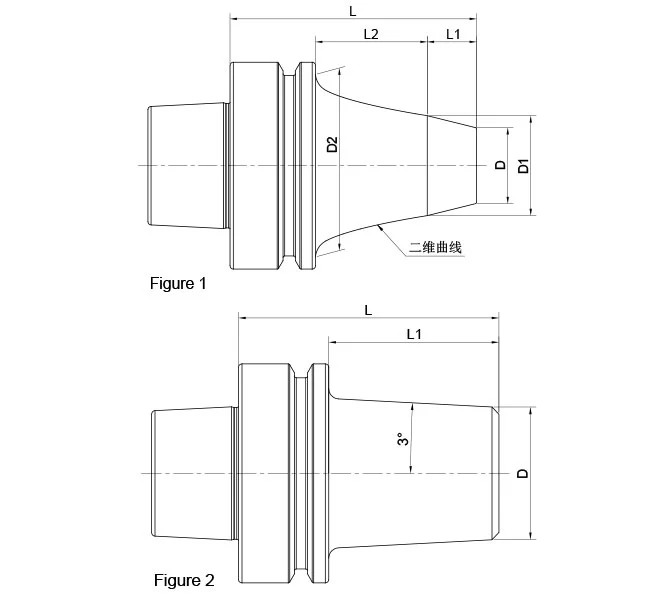

Size | D | D1 | D2 | L | L1 | L2 | Figure |
HSK63F-TSF08-55 | 23 | 29.5 | 53 | 55 | 7 | 22 | 1 |
HSK63F-TSF12-75 | 38 | - | - | 75 | 49 | - | 2 |
