In 5-axis machining, mold making, and complex surface milling, tool holder design plays an important role in reducing interference and maintaining machining stability. A conventional straight tool holder may have limited clearance when the spindle approaches the workpiece from different angles.
BRIGHT-TOOLS Curved Shrink Fit Tool Holder is designed specifically for these demanding machining applications. With its optimized curved body design and high-precision shrink fit clamping system, it provides improved tool clearance while maintaining high rigidity and reliable tool holding performance.
A Curved Shrink Fit Tool Holder is a precision CNC tool holder that combines shrink-fit clamping technology with a specially designed curved outer profile.
Unlike conventional straight shrink fit tool holders, the curved design provides additional clearance between the tool holder and the workpiece. This makes it particularly suitable for 5-axis machining, complex surface machining, mold machining, and multi-angle milling operations.
BRIGHT-TOOLS Curved Shrink Fit Tool Holders are manufactured for CNC machining centers where tool accessibility, rigidity, and machining accuracy are important.

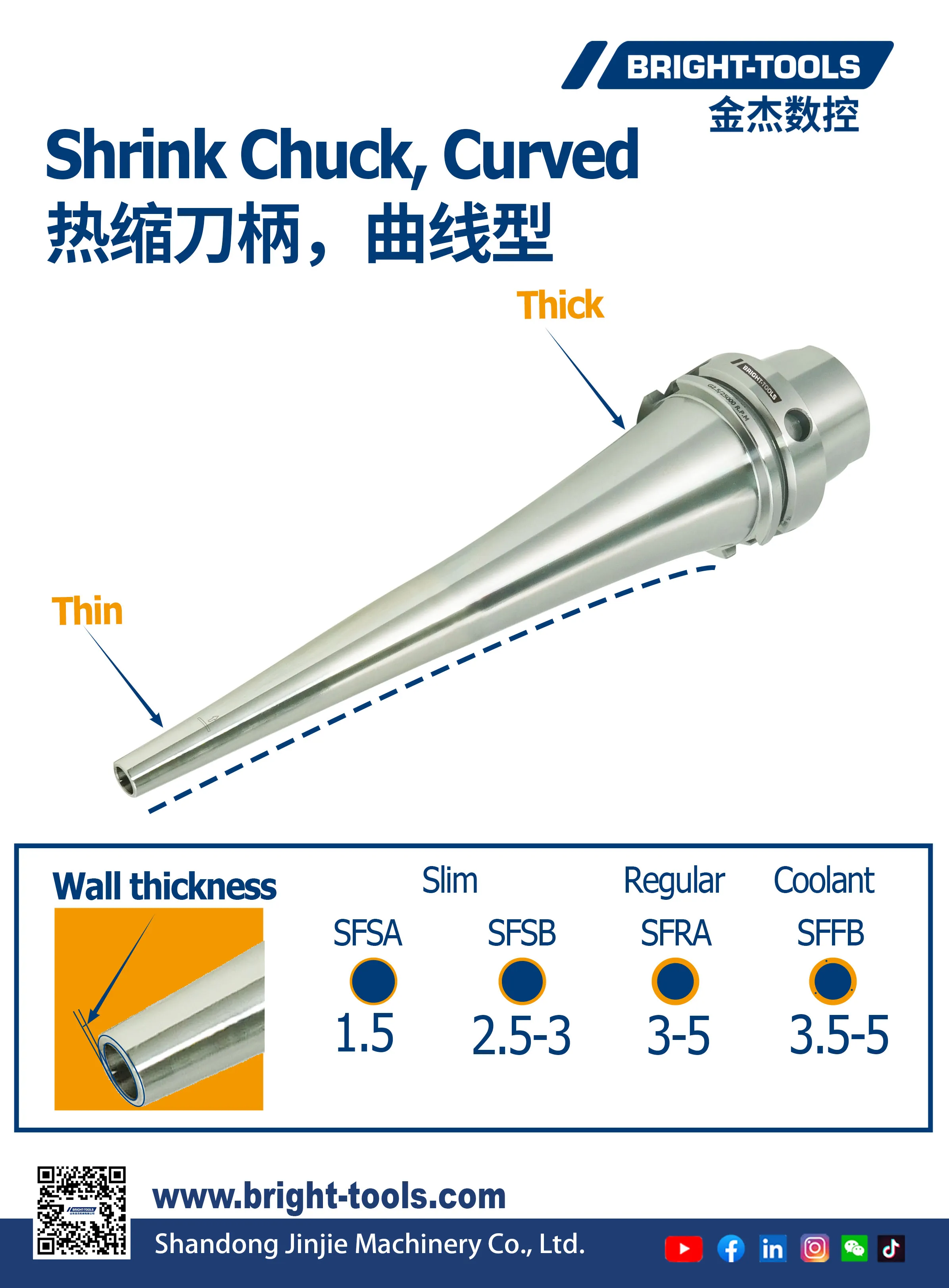

The most distinctive feature of the curved shrink fit tool holder is its optimized external profile.
During 5-axis machining, the spindle and cutting tool continuously change their orientation. A conventional straight tool holder may interfere with the workpiece when machining at certain angles.
The curved body of the BRIGHT-TOOLS Shrink Fit Tool Holder provides additional clearance around the cutting tool, helping reduce interference during multi-axis machining.
This design is especially suitable for:
5-axis machining centers
Complex surface machining
Mold and die machining
Deep cavity machining
Impeller machining
Aerospace component machining
Precision component machining
BRIGHT-TOOLS Shrink Fit Tool Holders use a thermal shrink-fit clamping method.
During tool installation, the tool holder is heated to expand the bore. The cutting tool is then inserted into the holder, and as the holder cools, the bore contracts around the tool shank.
This creates a strong and uniform clamping force around the cutting tool.
The integrated clamping structure provides high rigidity and is suitable for high-speed milling and precision machining applications.
Precision manufacturing of the tool holder bore helps provide accurate and stable tool clamping.
Uniform clamping can help reduce tool runout and improve the stability of the tool assembly during high-speed spindle rotation.
For precision machining, stable tool clamping can contribute to:
Improved machining accuracy
Better surface finish
More stable cutting performance
Longer tool life
Reduced vibration
The Curved Shrink Fit Tool Holder is particularly suitable for 5-axis machining applications.

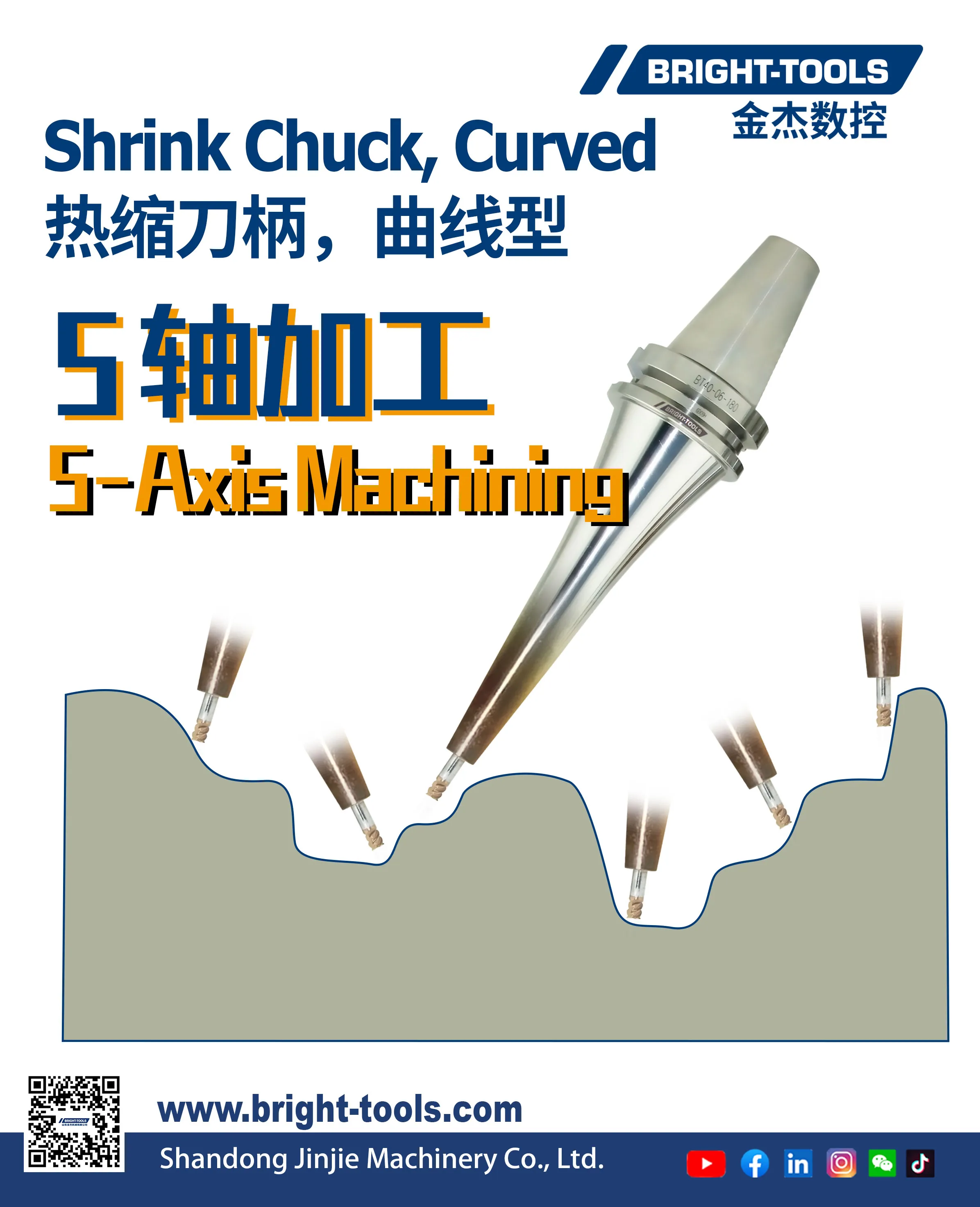

When machining complex surfaces, the cutting tool approaches the workpiece from different directions and angles. The optimized curved body helps create additional space between the tool holder and workpiece.
This makes the BRIGHT-TOOLS curved shrink fit series an ideal choice for applications requiring greater tool accessibility and reduced collision risk.
Complex components such as impellers, aerospace parts, automotive components, and precision molds often require multi-angle cutting.
The curved tool holder design helps improve tool accessibility and provides additional clearance during simultaneous 5-axis machining.
Mold machining often involves deep cavities, narrow areas, steep walls, and complex geometries.
A curved shrink fit tool holder can provide better clearance when the cutting tool enters difficult-to-reach areas.
Shrink fit tool holders provide a rigid connection between the cutting tool and tool holder.
The compact clamping structure makes them suitable for high-speed machining applications where spindle speed, balance, rigidity, and tool stability are important.
For aerospace, automotive, medical, electronics, and precision mechanical components, a stable tool holding system is essential.
BRIGHT-TOOLS Curved Shrink Fit Tool Holders can be used for precision milling where machining accuracy, surface quality, and process stability are required.
The main difference is the external body geometry.
A conventional straight shrink fit tool holder provides a simple and rigid structure, while a curved shrink fit tool holder is designed with additional attention to tool clearance and accessibility.
For standard machining operations, a straight tool holder may be sufficient. For 5-axis machining, complex surface milling, and applications with potential tool holder interference, the curved design can provide greater flexibility.
Product Name: Curved Shrink Fit Tool Holder
Product Category: CNC Tool Holder / Shrink Fit Tool Holder
Main Application: 5-Axis Machining, Complex Surface Machining, Mold Machining, High-Speed Milling
Key Features: Curved Body Design, Reduced Interference, High Rigidity, High Precision Clamping
BRIGHT-TOOLS develops and manufactures CNC tool holders for different machining applications. The product range includes Shrink Fit Tool Holders, BT Tool Holders, HSK Tool Holders, ER Collet Chucks, Hydraulic Chucks, Face Mill Holders, Boring Tool Holders, Anti-Vibration Tool Holders, and CNC Turning Tool Holders.
With a focus on precision manufacturing, dimensional consistency, and reliable performance, BRIGHT-TOOLS provides CNC tooling solutions for machining companies, tool distributors, and OEM customers worldwide.
BRIGHT-TOOLS is a professional CNC Tool Holder Manufacturer in China, providing precision tool holding solutions for CNC machining centers.
Our Curved Shrink Fit Tool Holder is designed for customers looking for:
Curved Shrink Fit Tool Holder
5-Axis Machining Tool Holder
Complex Surface Machining Tool Holder
Mold Machining Tool Holder
High-Speed Milling Tool Holder
CNC Shrink Fit Tool Holder
Precision CNC Tool Holder
Shrink Fit Tool Holder Manufacturer
For product specifications, available sizes, technical information, and quotations, please contact BRIGHT-TOOLS.
